" I cannot help myself. It is fun to have a unique instrument made to your own specifications and to have luthiers such as the Mayers to bring life to the unique wood selections. I love both my Little Koa-Moe #247 and my Master Blue Pond Tenor Moe #414. It took a while for it to open up but it sounds great and appears to be aging well. Both ukes allow me to escape my regular high stress day and wonder off somewhere."

- Eddy M.



(scroll down for more photos)



Share this UkeTracker page on Facebook:

  • Master Grade Blue Pond Myrtle top, back & sides

  • Bloodwood body binding with Abalone purfling on top

  • Abalone rosette

  • High gloss polyester finish

  • Radiused Ebony fretboard with Bloodwood binding & Abalone markers

  • Mahogany neck

  • Geared machine head tuners with amber buttons

  • Leopardwood & Maple Signature Headplate

  • MiSi, LR Baggs undersaddle pickup & volume control

Hand-crafted in the USA by Gordon & Char Mayer. Each instrument is numbered & signed.



Wood Grade: Specialty
Wood Availability: Sorry, this wood is no longer available.

Cascade Series Wood Cascade Series Wood

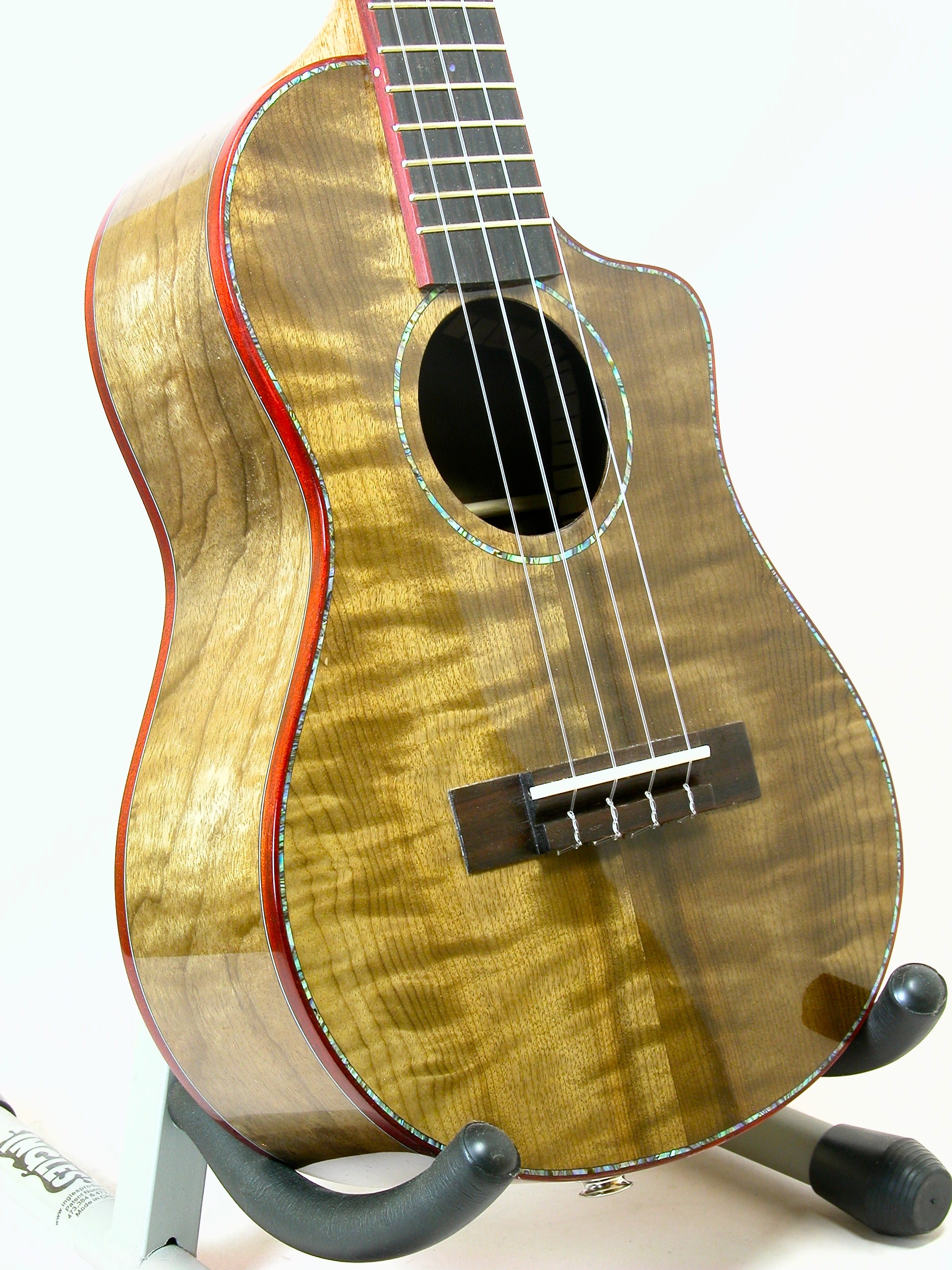

Gallery Photos (completed instrument)

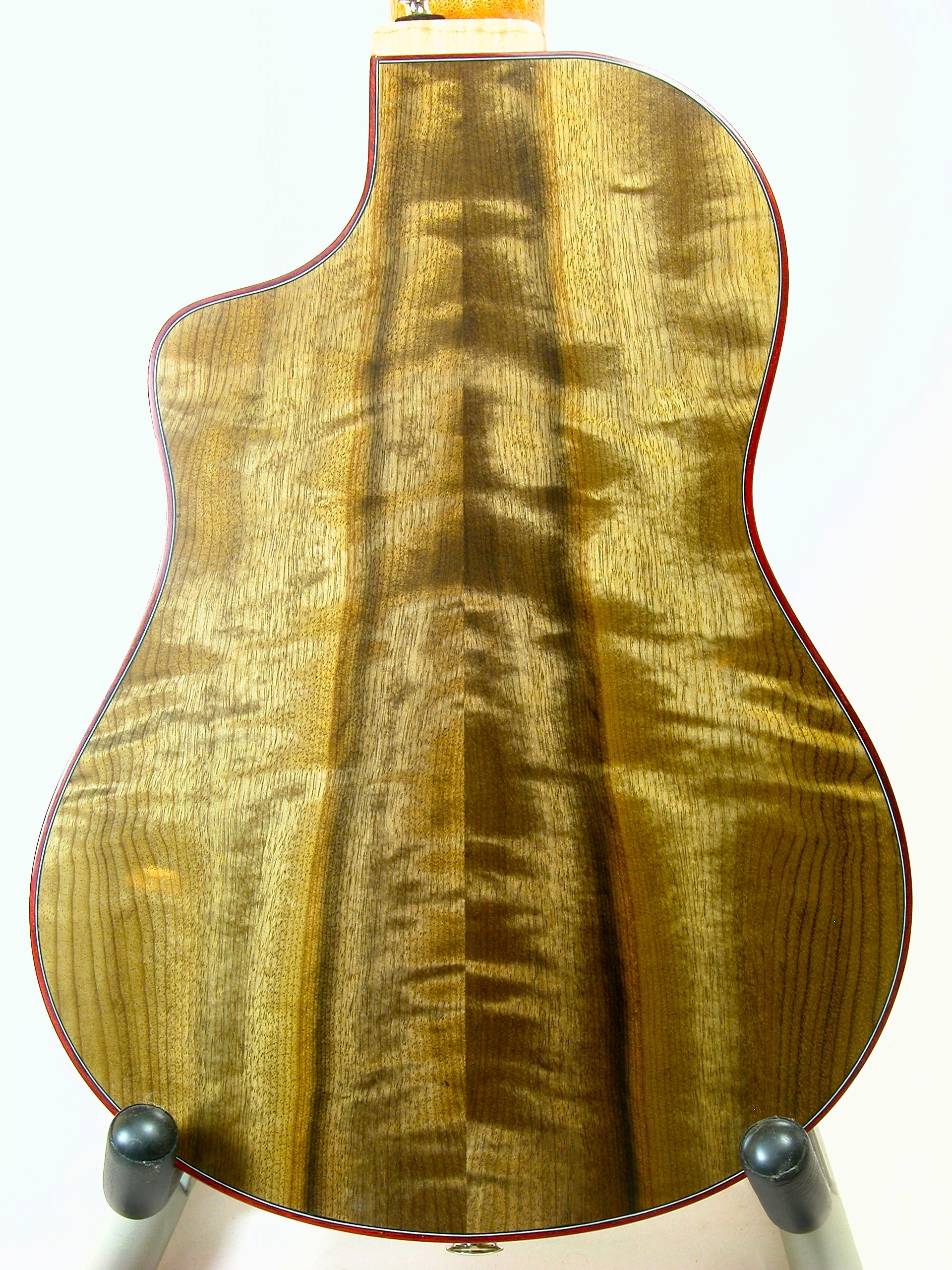

Back

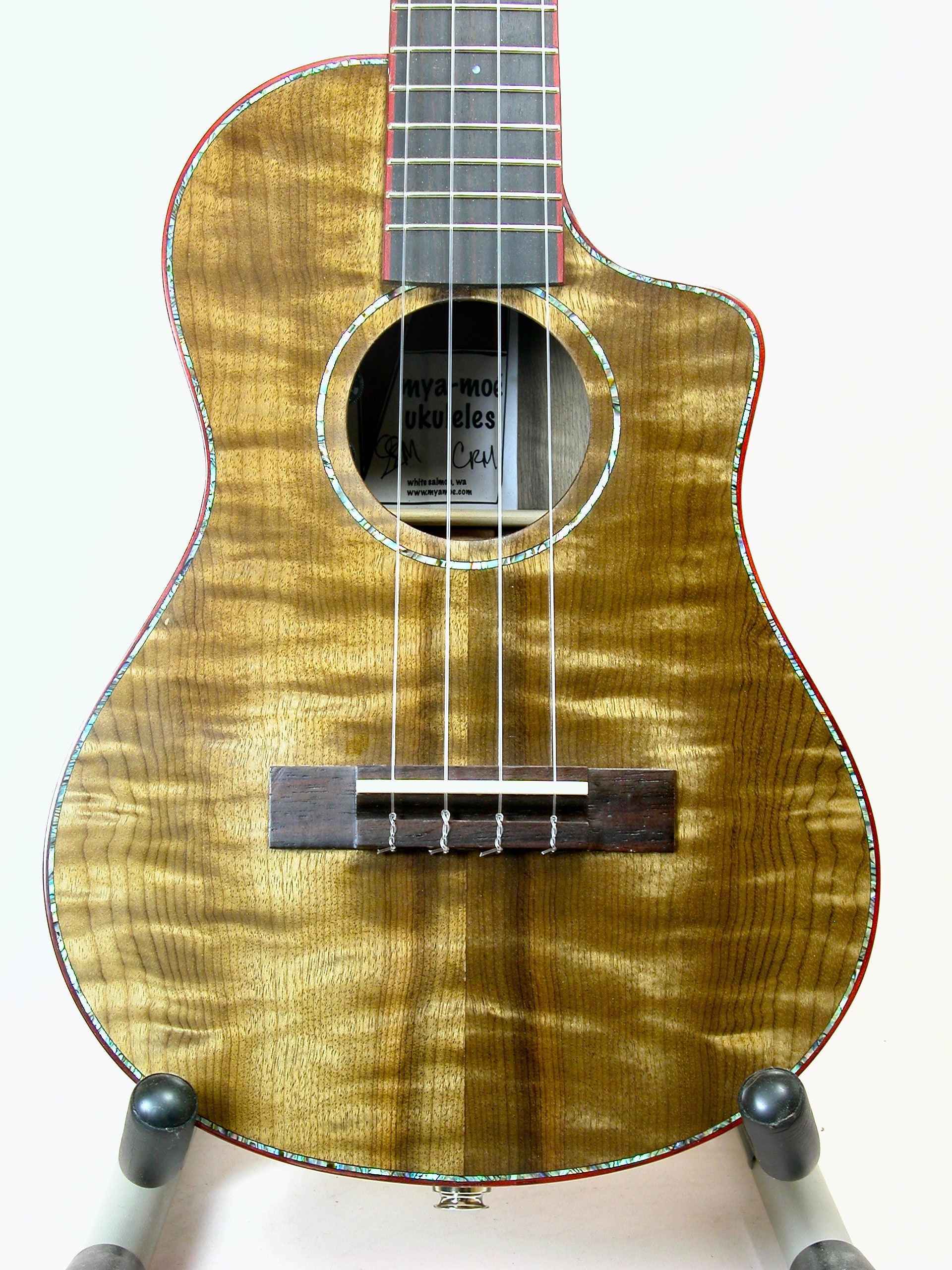

Front

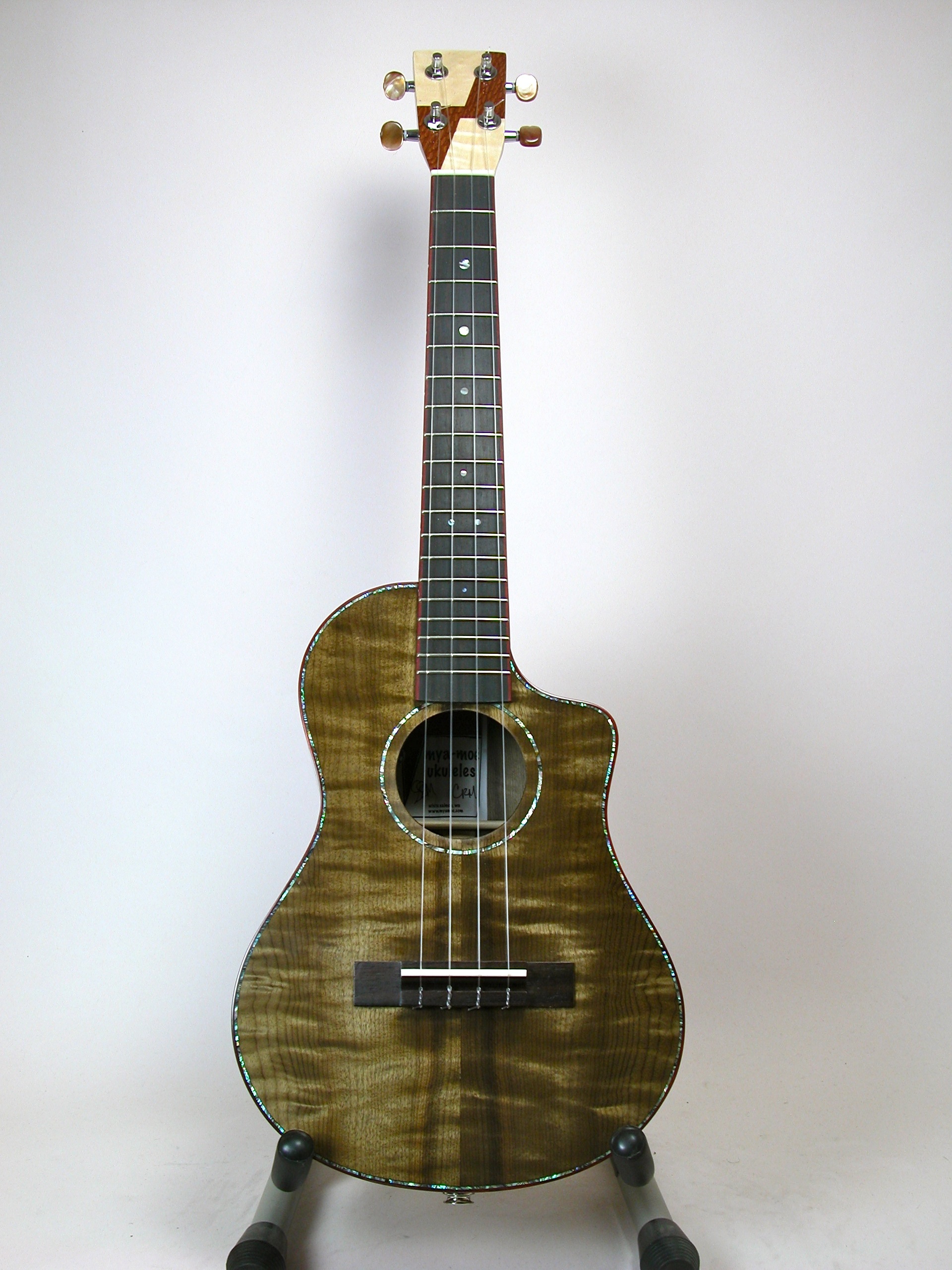

Full Front
Build Schedule

Step

Description

 Picture, Click to Enlarge

1

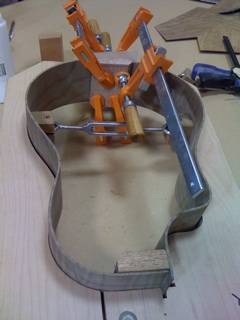

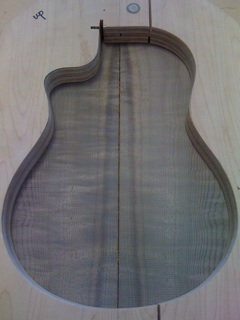

bend sides, glue in neck block

2

glue in tail block

3

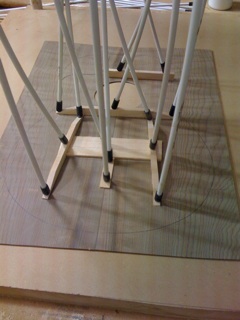

rout & glue-in end graft, kerf top edge, kerf bottom edge, brace back

4

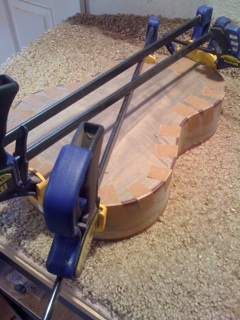

brace top, glue back onto sides

5

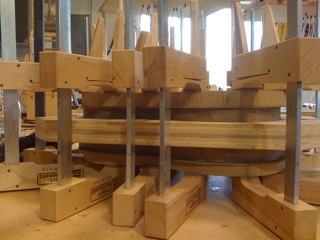

glue top onto sides, prep fretboard & neck

6

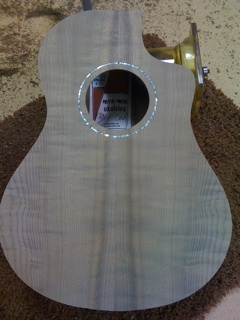

clean up body, rout dovetail, drill tuner holes, glue fretboard onto neck, rout binding channels, glue in top binding

7

shape neck, dress fret ends, glue in back binding

8

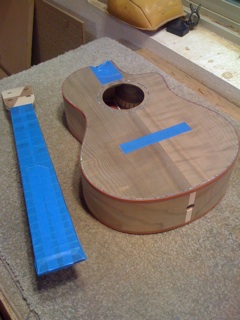

prep for finish, tape off for spraying

9

fill pores twice

10

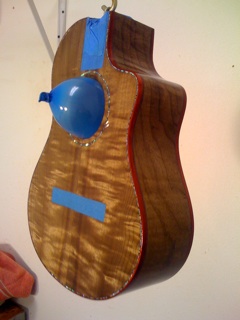

first coat of poly topcoat

11

second coat of poly topcoat

12

sand & buff finish, glue neck/fretboard onto body

13

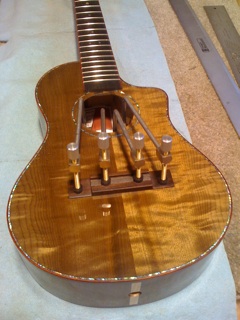

glue on bridge

14

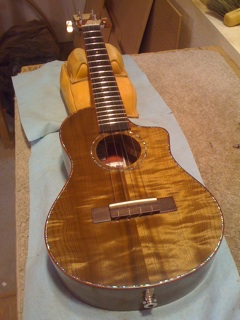

make saddle, (put in pickup, if any), cut nut, final fretwork, put in tuners, put on strings
Original Wood Set
