Cascade Series



" Wow, Cary, The Myrtle and Port Orford Cedar Cascade Series baritone you built for me has a very rich baritone sound that is excellent when played unplugged, but even more so when played through my amp. The K & K twin spot pickup works so well. As for the appearance, it is absolutely beautiful! The Master Grade Myrtle bookmatched back and sides and the Curly Port Orford Cedar top with the rope binding make this a real stunner. As easy on the eyes as it is to play. What fun! "

- Fred P.



(scroll down for more photos)



Share this UkeTracker page on Facebook:

  • Master Grade Myrtle back & sides

  • Curly Port Orford Cedar top

  • Maple & Walnut Rope body binding

  • Rope rosette

  • Hand-rubbed oil finish

  • Radiused Maple fretboard with Walnut binding & Leaf Inlay markers

  • Port Orford Cedar neck

  • Geared machine head tuners with amber buttons

  • Custom Signature Headplate

  • K&K Twin Spot pickup

Hand-crafted in the USA by Cary Kelly. Each instrument is numbered & signed.



Wood Grade: Master
Wood Availability: This wood species is available. Specific wood sets vary.

Cascade Series Wood Cascade Series Wood



Gallery Photos (completed instrument)

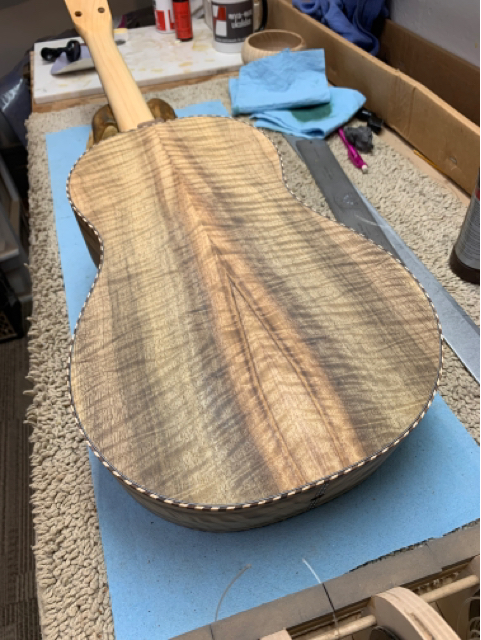

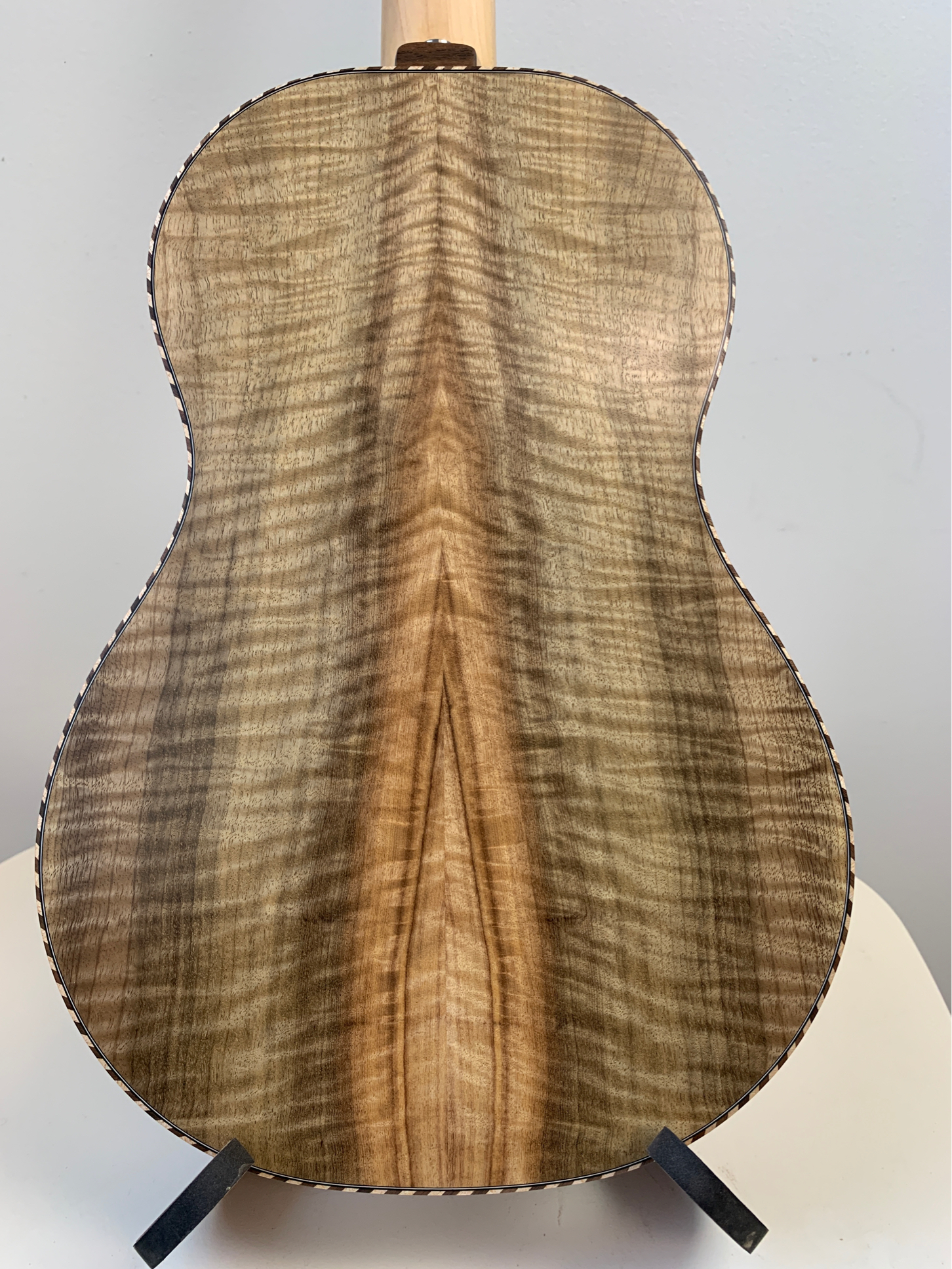

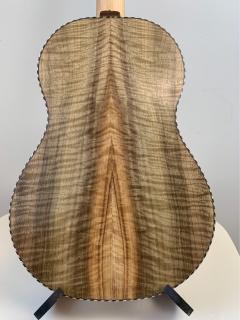

Back

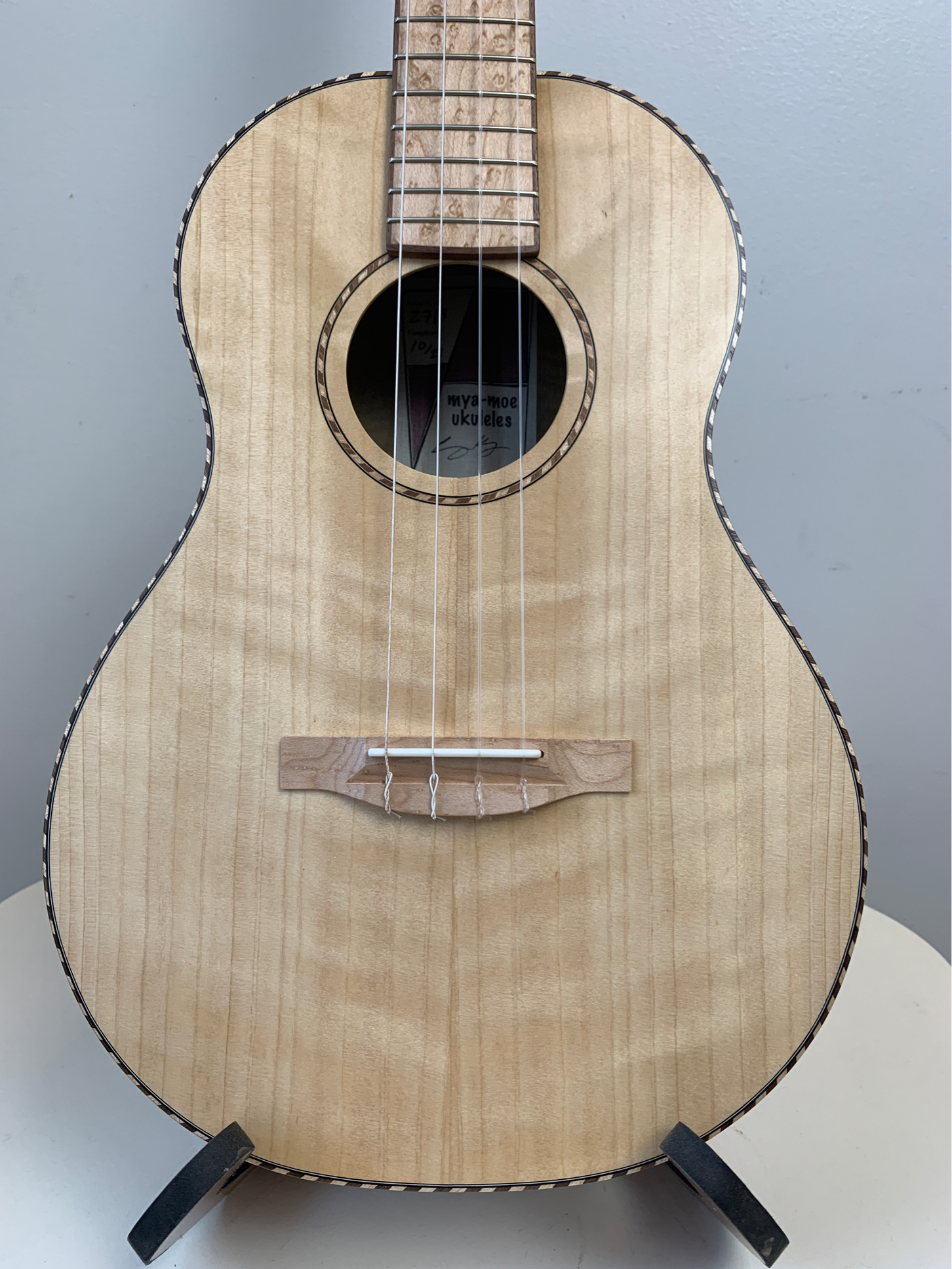

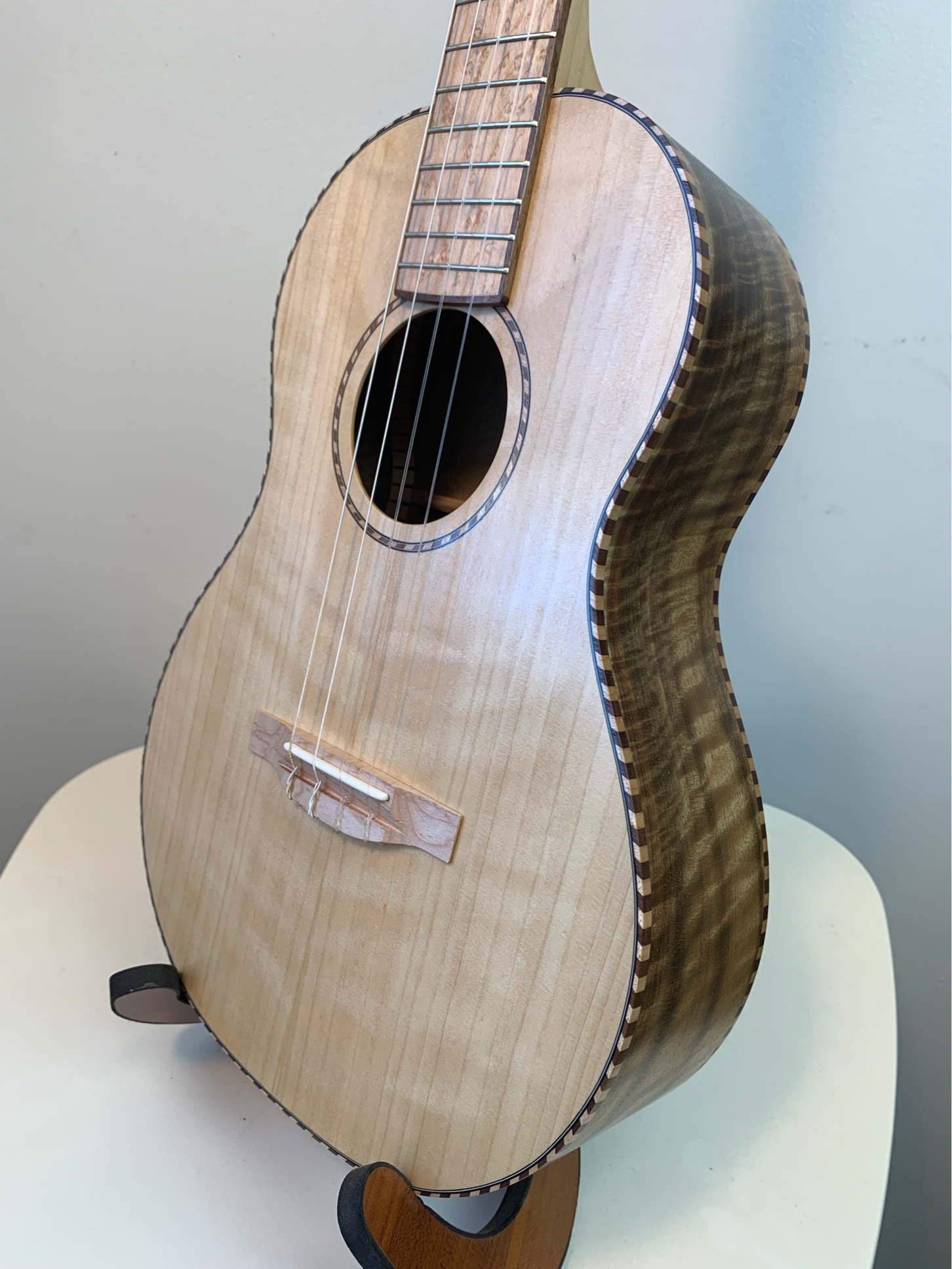

Front

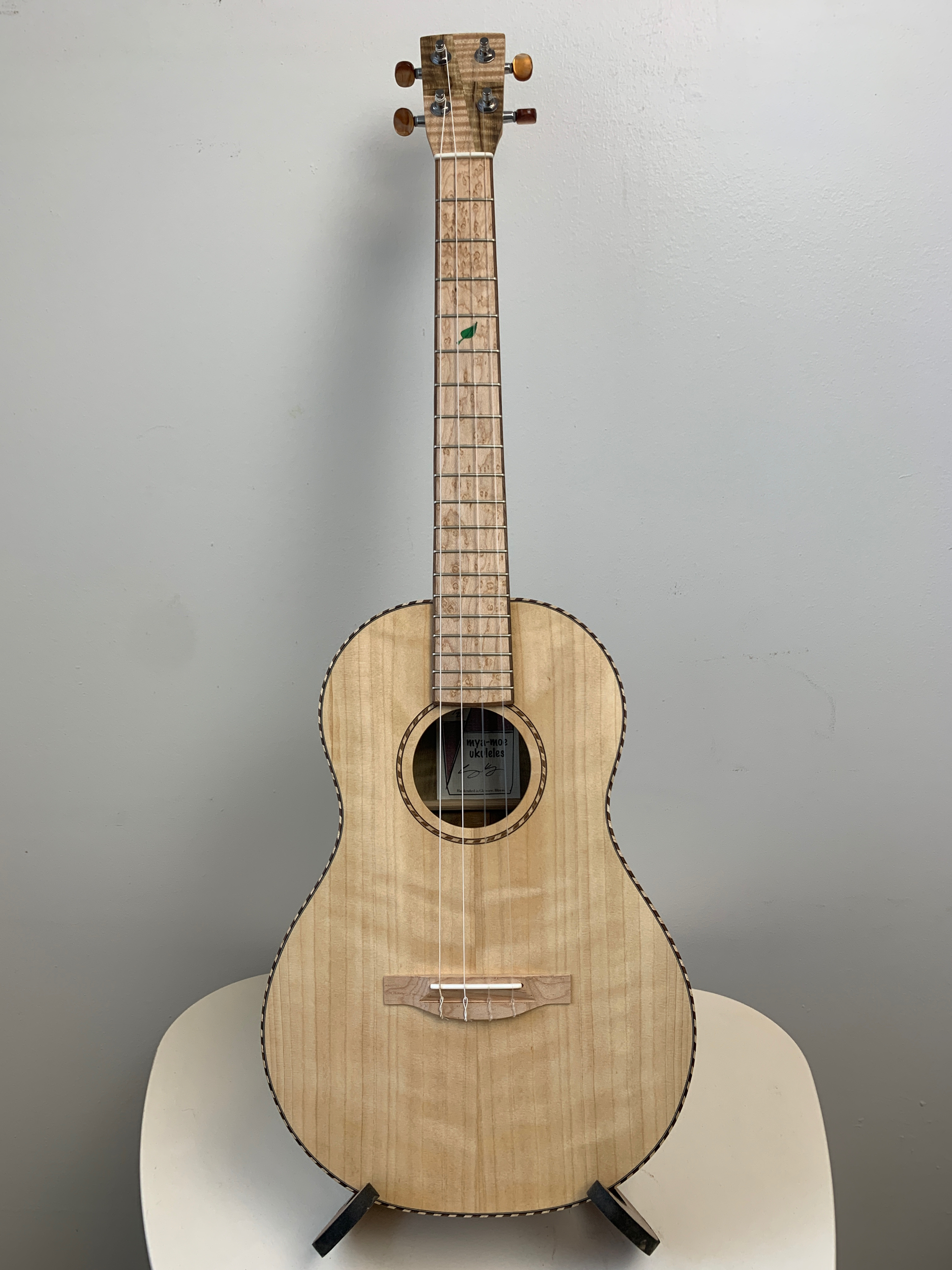

Full Front
Owner Pics & Instrument Videos
Build Schedule

Step

Description

 Picture, Click to Enlarge

1

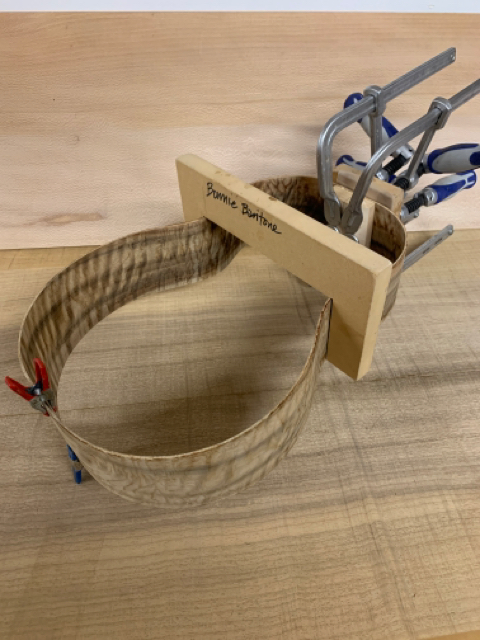

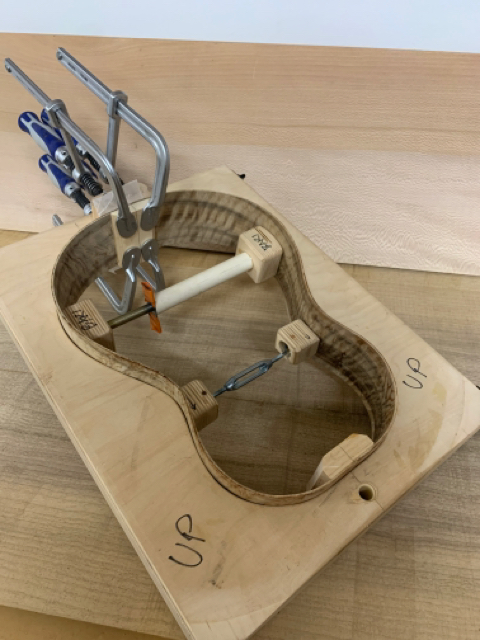

bend sides, glue in neck block

2

glue in tail block

3

rout & glue-in end graft, kerf top edge, kerf bottom edge, join top/back plates

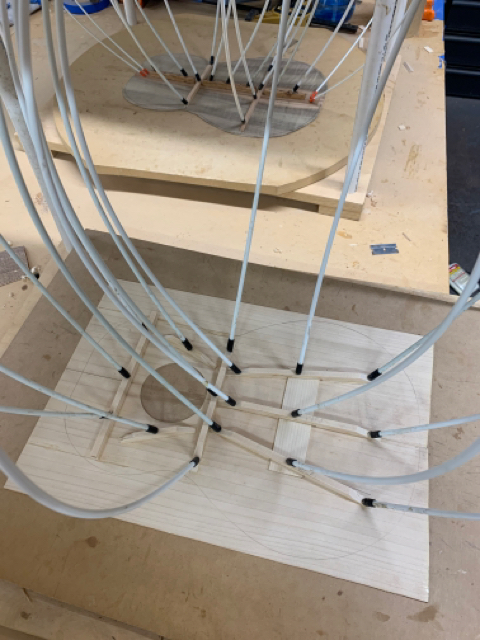

4

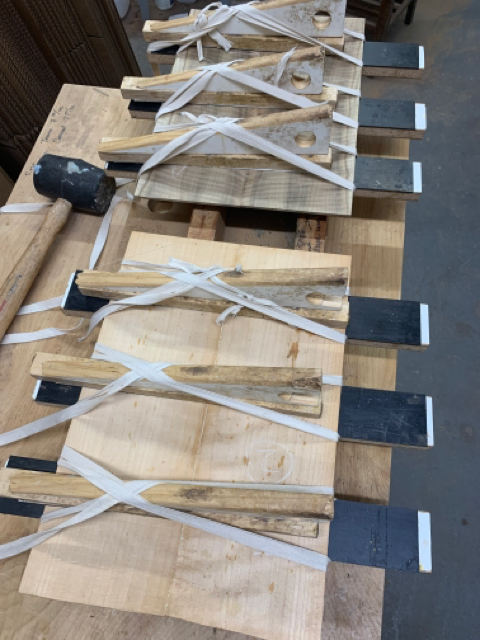

brace top/back, glue back onto sides

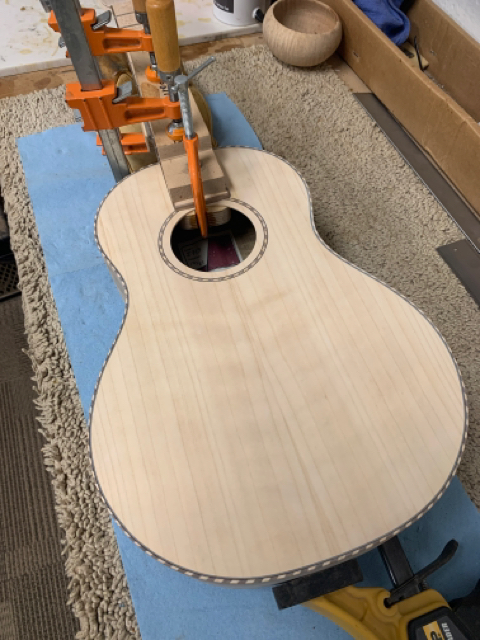

5

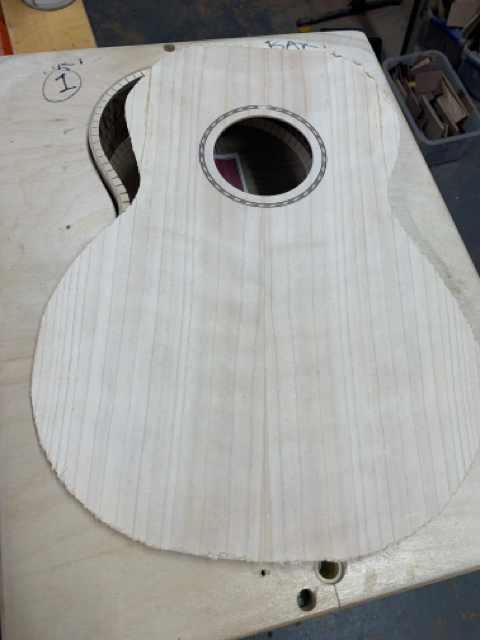

carve braces, glue top onto sides, prep fretboard & neck

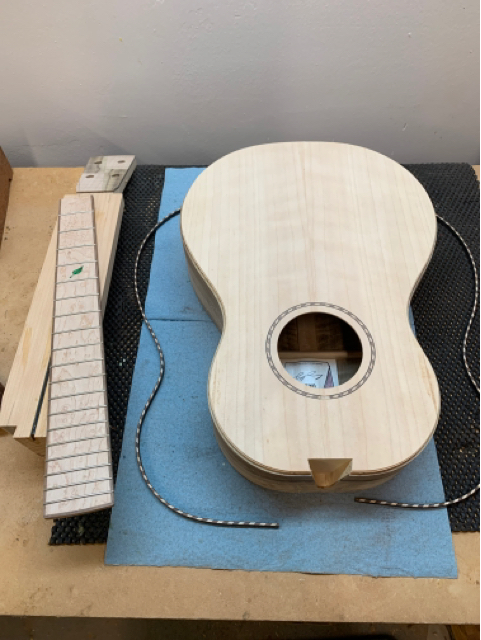

6

clean up body, rout dovetail, drill tuner holes, rout binding channels, glue in top binding

7

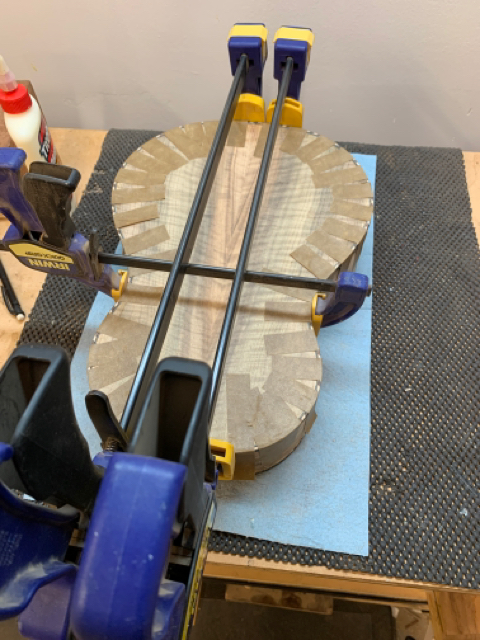

glue fretboard to neck, glue in back binding

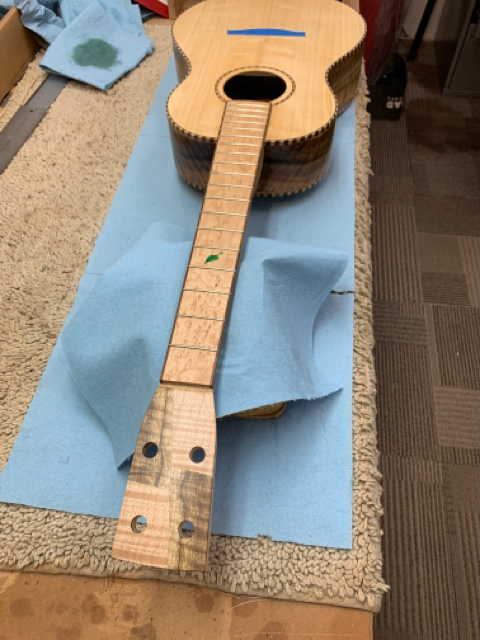

8

shape neck, dress fret ends, join neck to body

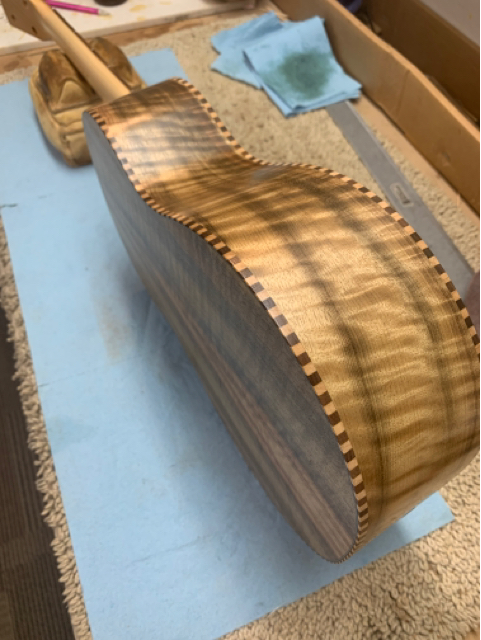

9

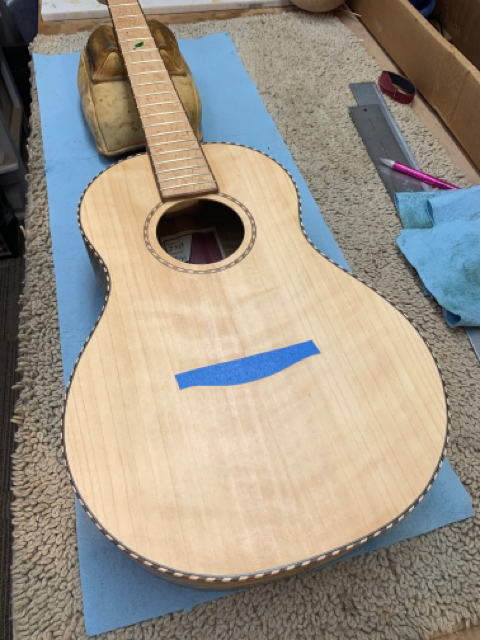

hand sand and prep for finish, first coat of oil

10

second coat of oil

11

third coat of oil

12

fourth coat of oil

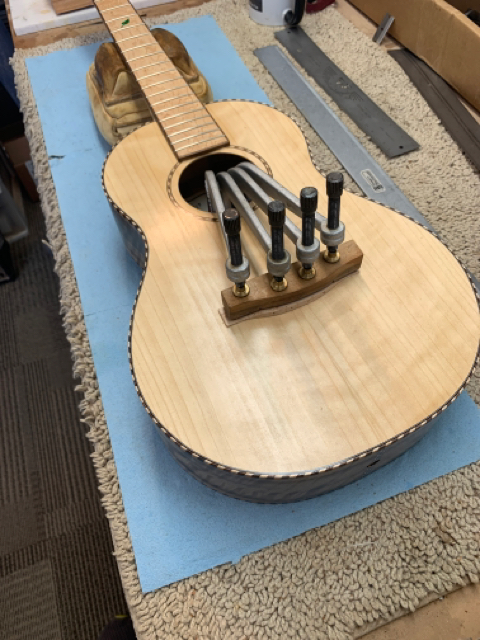

13

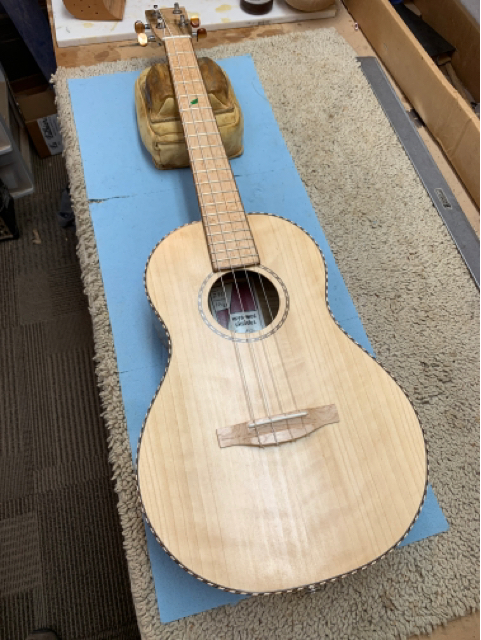

glue on bridge

14

make saddle, (put in pickup, if any), cut nut, final fretwork, put in tuners, put on strings

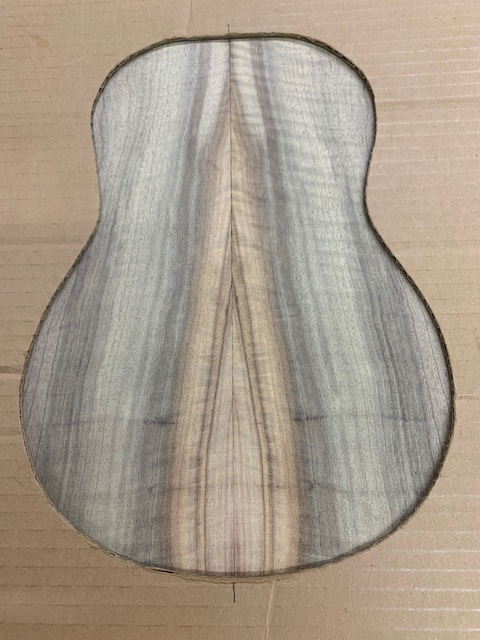

Original Wood Set
