" It looks beautiful and I am digging the neck size, shape, and the overall setup. Upon 1st strum, I though it sounded maybe a little bit timid and 'tight', but as an hour or two passed I could feel it opening up a bit and we  getting along quite well. I think it needs to be played in, and well, that's what I bought it for! Thanks for building a solid, light-weight, and beautiful instrument. Though I expected nothing less, it's always reassuring to have expectations met. They certainly were."

- Greg C.



(scroll down for more photos)



Share this UkeTracker page on Facebook:

  • Figured Sycamore top, back & sides

  • Koa body binding

  • Koa rosette

  • Hand-rubbed oil finish

  • Radiused Ebony fretboard with Koa binding & Abalone markers

  • Mahogany neck

  • Peghed brand geared tuners

  • Custom Signature Headplate

Hand-crafted in the USA by Gordon & Char Mayer and Aaron Keim. Each instrument is numbered & signed.



Wood Grade: Classic
Wood Availability: This wood species is available. Specific wood sets vary.

Cascade Series Wood Cascade Series Wood

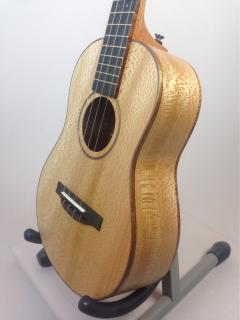

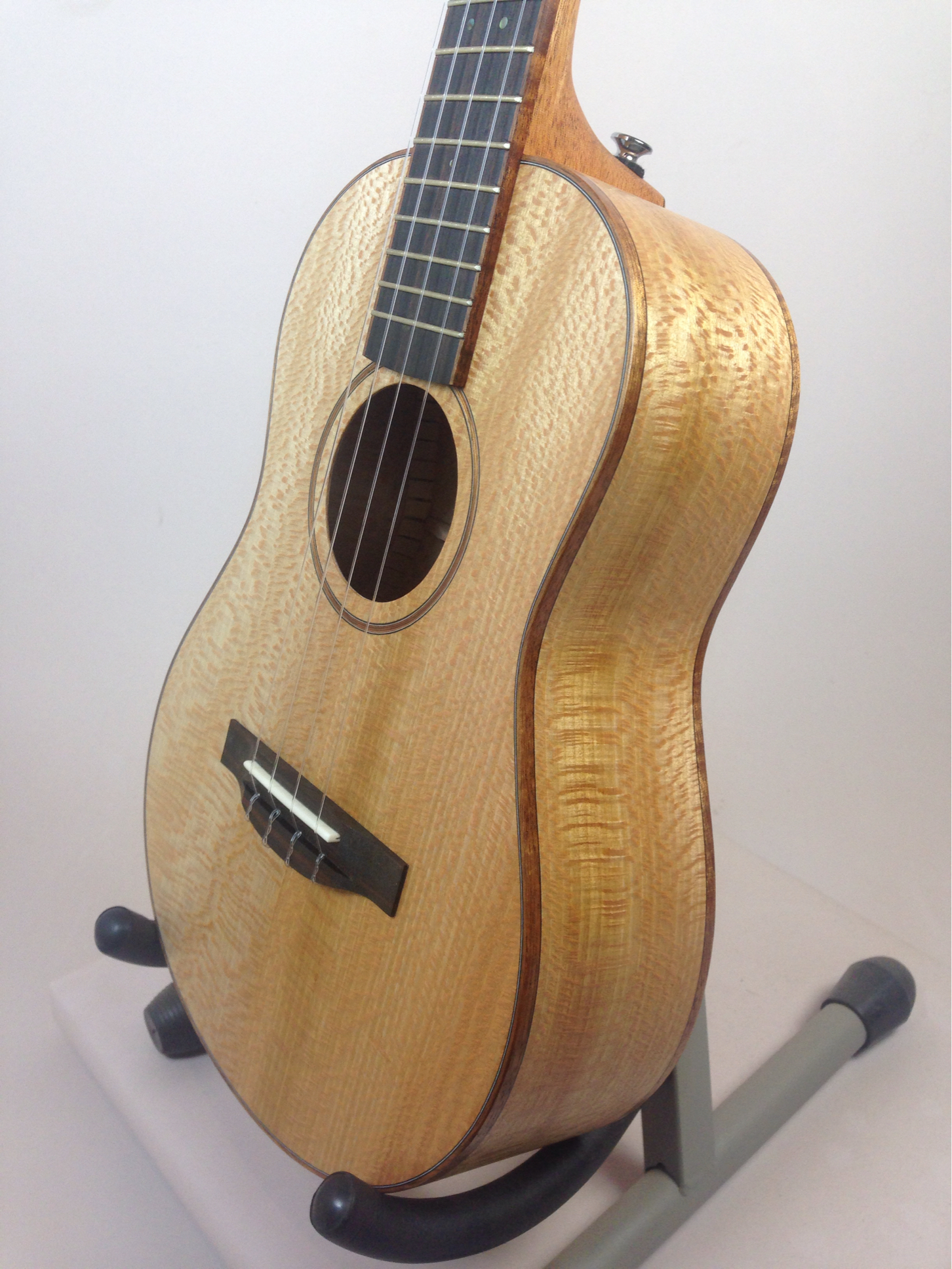

Gallery Photos (completed instrument)

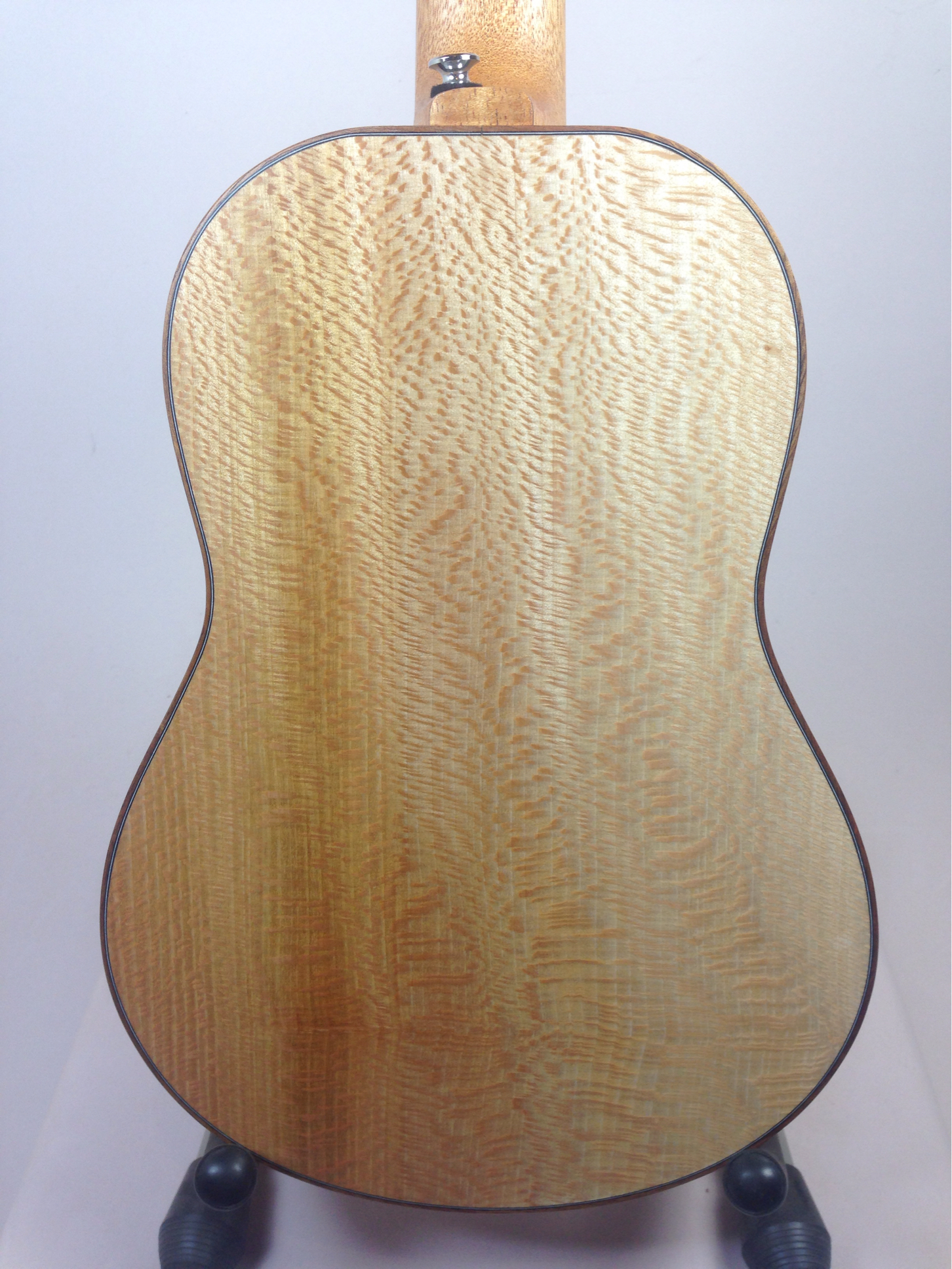

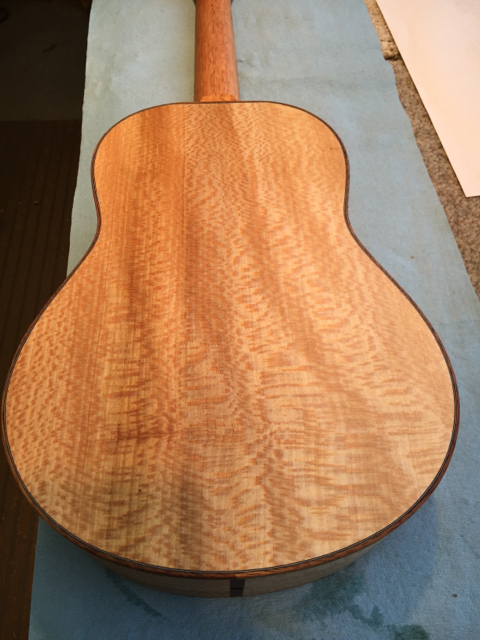

Back

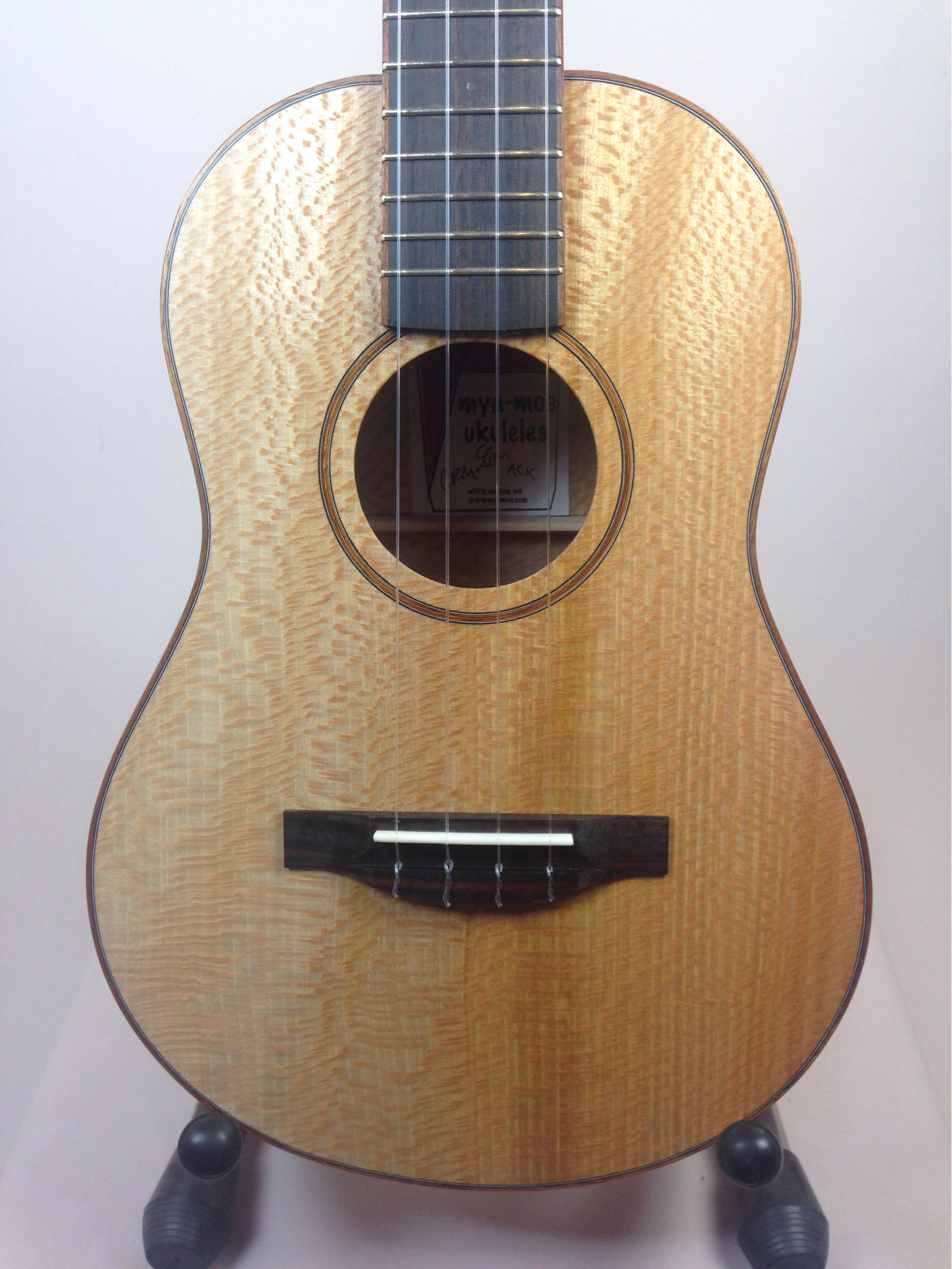

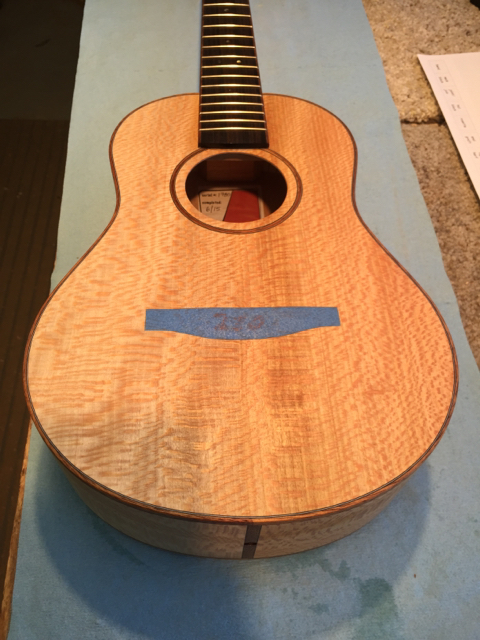

Front

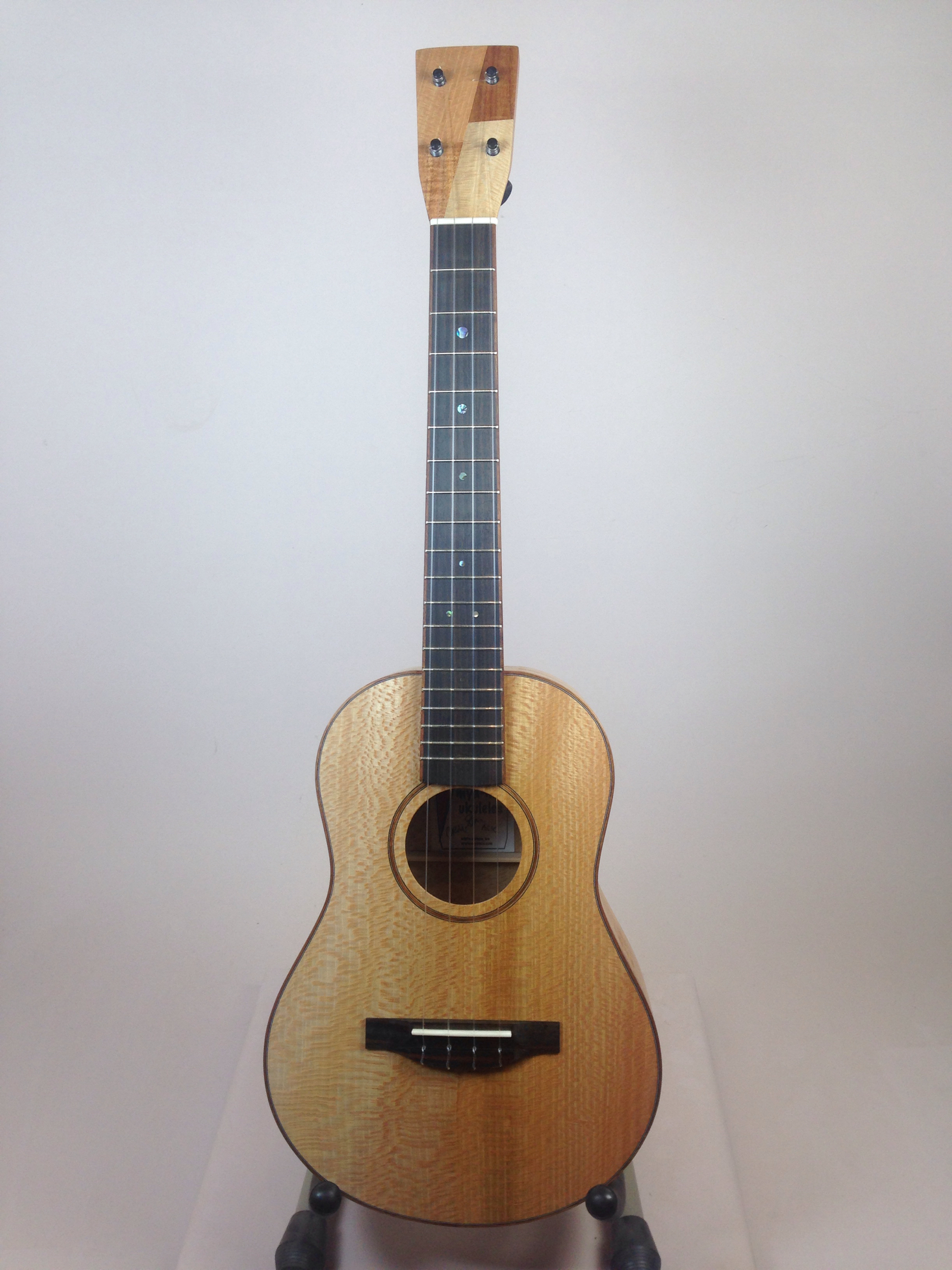

Full Front
Build Schedule

Step

Description

 Picture, Click to Enlarge

1

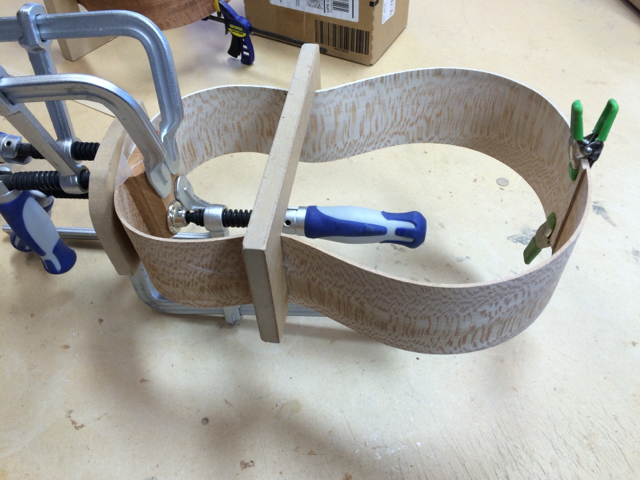

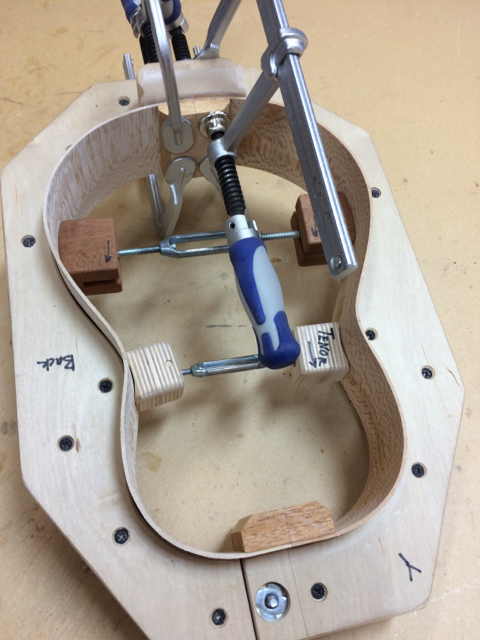

bend sides, glue in neck block

2

glue in tail block

3

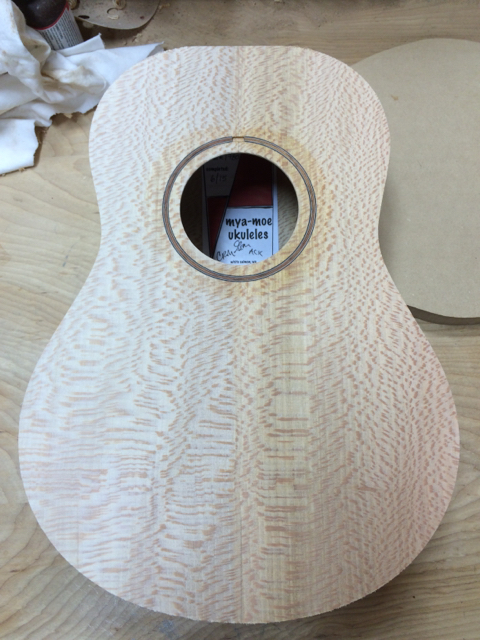

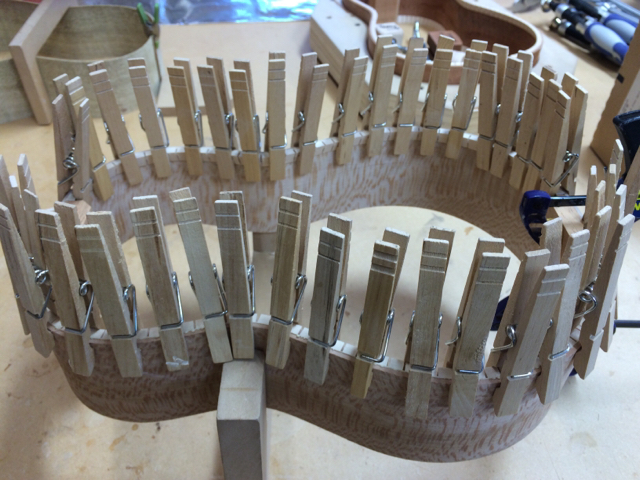

rout & glue-in end graft, kerf top edge, kerf bottom edge, join top/back plates

4

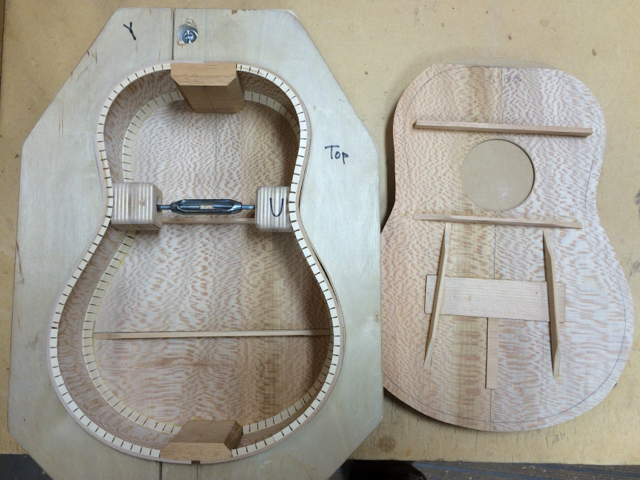

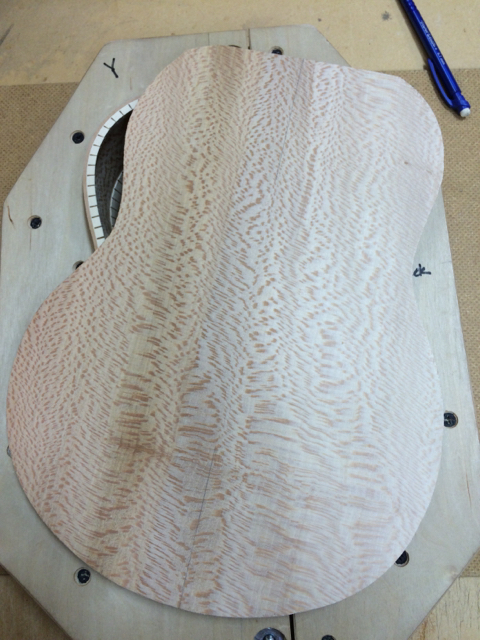

brace top/back, glue back onto sides

5

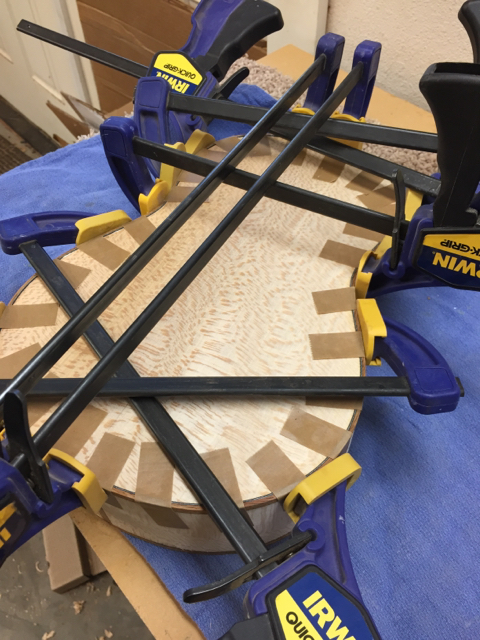

carve braces, glue top onto sides, prep fretboard & neck

6

clean up body, rout dovetail, drill tuner holes, rout binding channels, glue in top binding

7

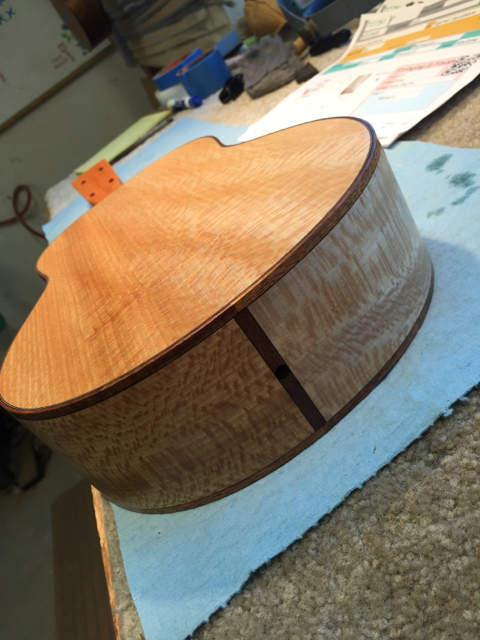

glue fretboard to neck, glue in back binding

8

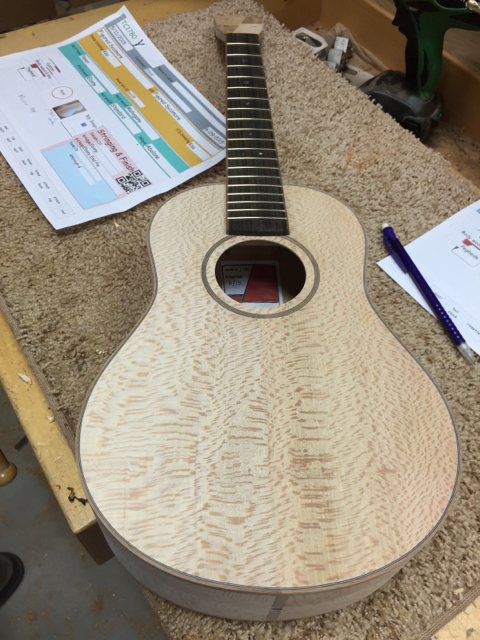

shape neck, dress fret ends, join neck to body

9

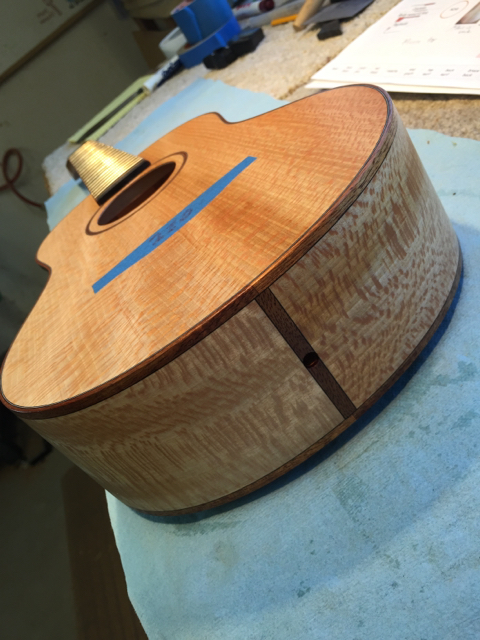

hand sand and prep for finish, first coat of oil

10

second coat of oil

11

third coat of oil

12

fourth coat of oil

13

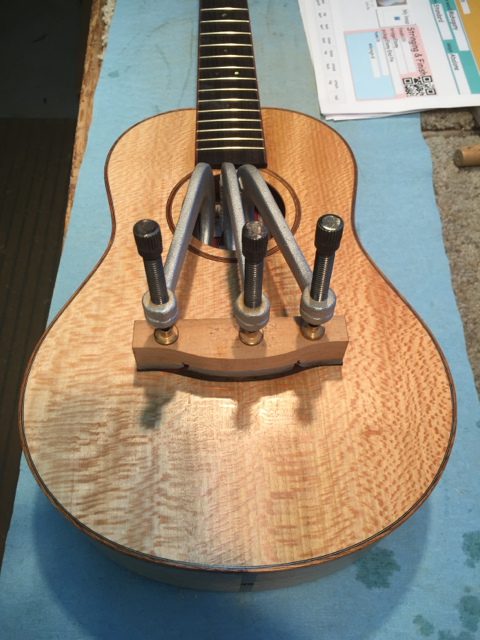

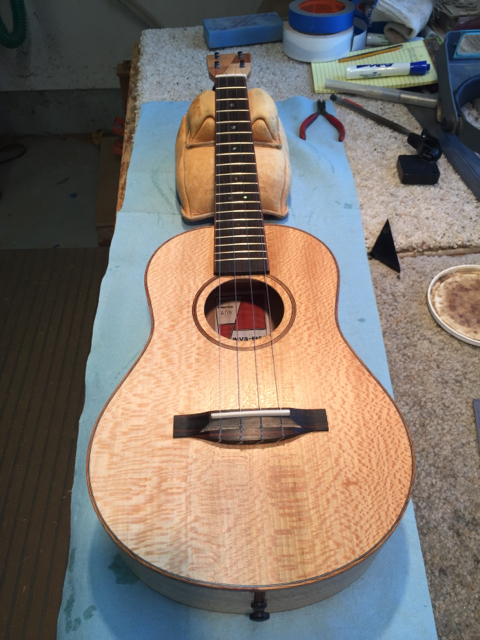

glue on bridge

14

make saddle, (put in pickup, if any), cut nut, final fretwork, put in tuners, put on strings
Original Wood Set
