" Now that the instrument is here I will rejoice with song. My first impression after playing the uke for 30 minutes was: 1. I was shocked by the volume 2. that the playability is great 3. that the tone is amazing already. I cant wait for it to break in. It was a great leap of faith to buy an instrument with out playing it but watching Gerald Ross play one I knew I was doing the right thing placing the order. Thank you for doing things right."

- David M.



(scroll down for more photos)



Share this UkeTracker page on Facebook:

  • Figured Mahogany top, back & sides

  • Maple & Walnut Rope body binding

  • Hand-rubbed oil finish

  • Radiused Ebony fretboard with Ebony binding & Abalone markers

  • Mahogany neck

  • Geared machine head tuners with amber buttons

  • Ebony & Maple Signature Headplate

Hand-crafted in the USA by Gordon & Char Mayer and Aaron Keim. Each instrument is numbered & signed.



Wood Grade: Classic
Wood Availability: Sorry, this wood is no longer available.

Cascade Series Wood Cascade Series Wood



Gallery Photos (completed instrument)

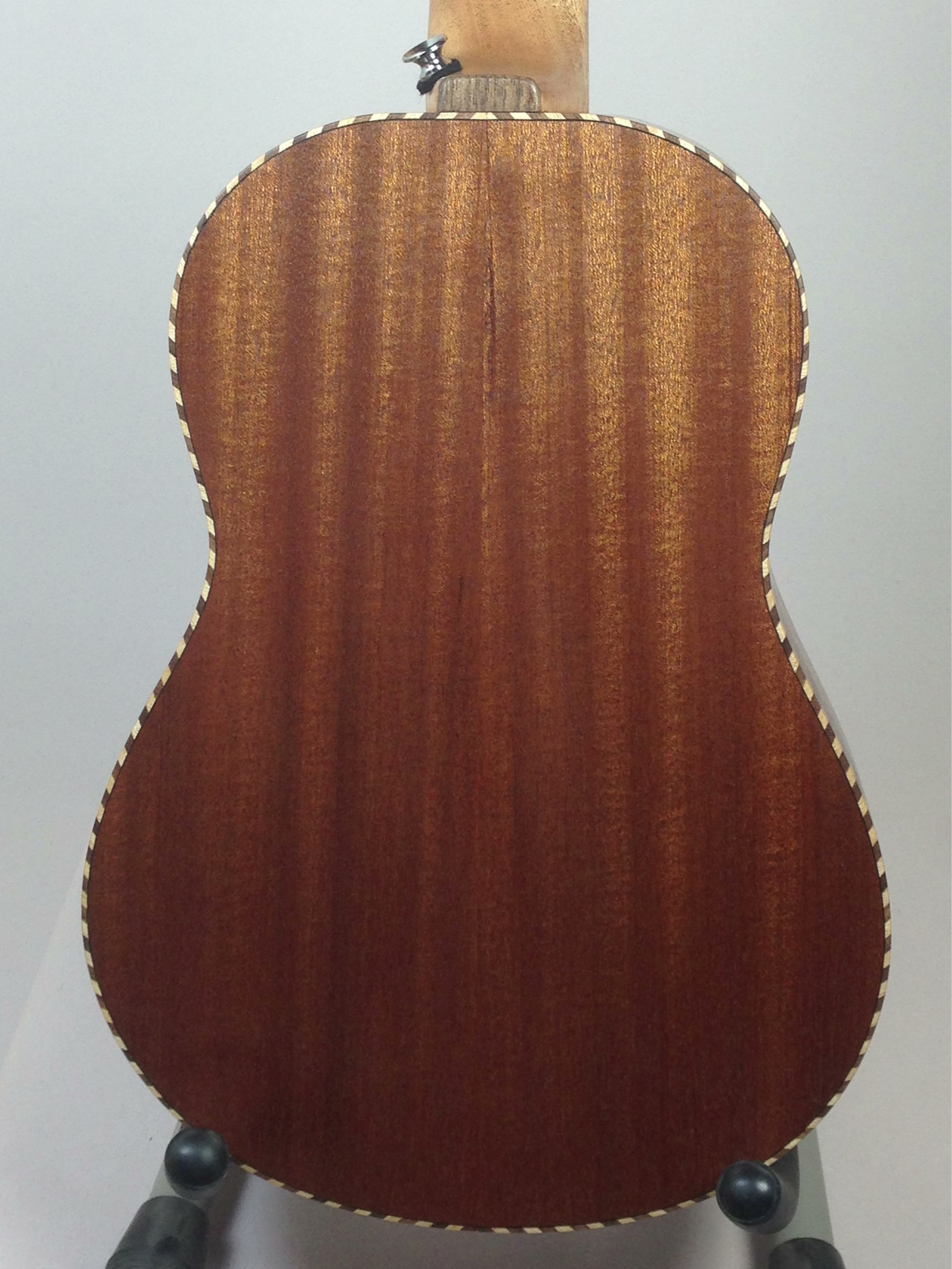

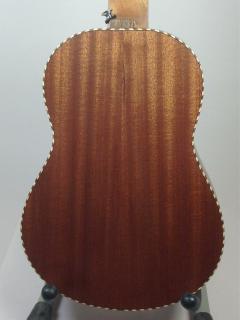

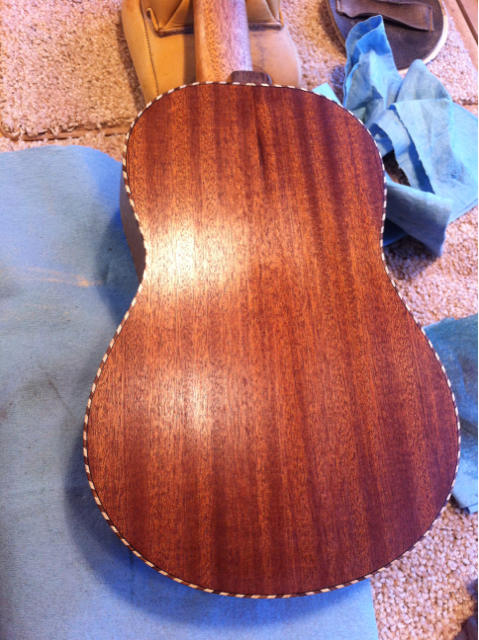

Back

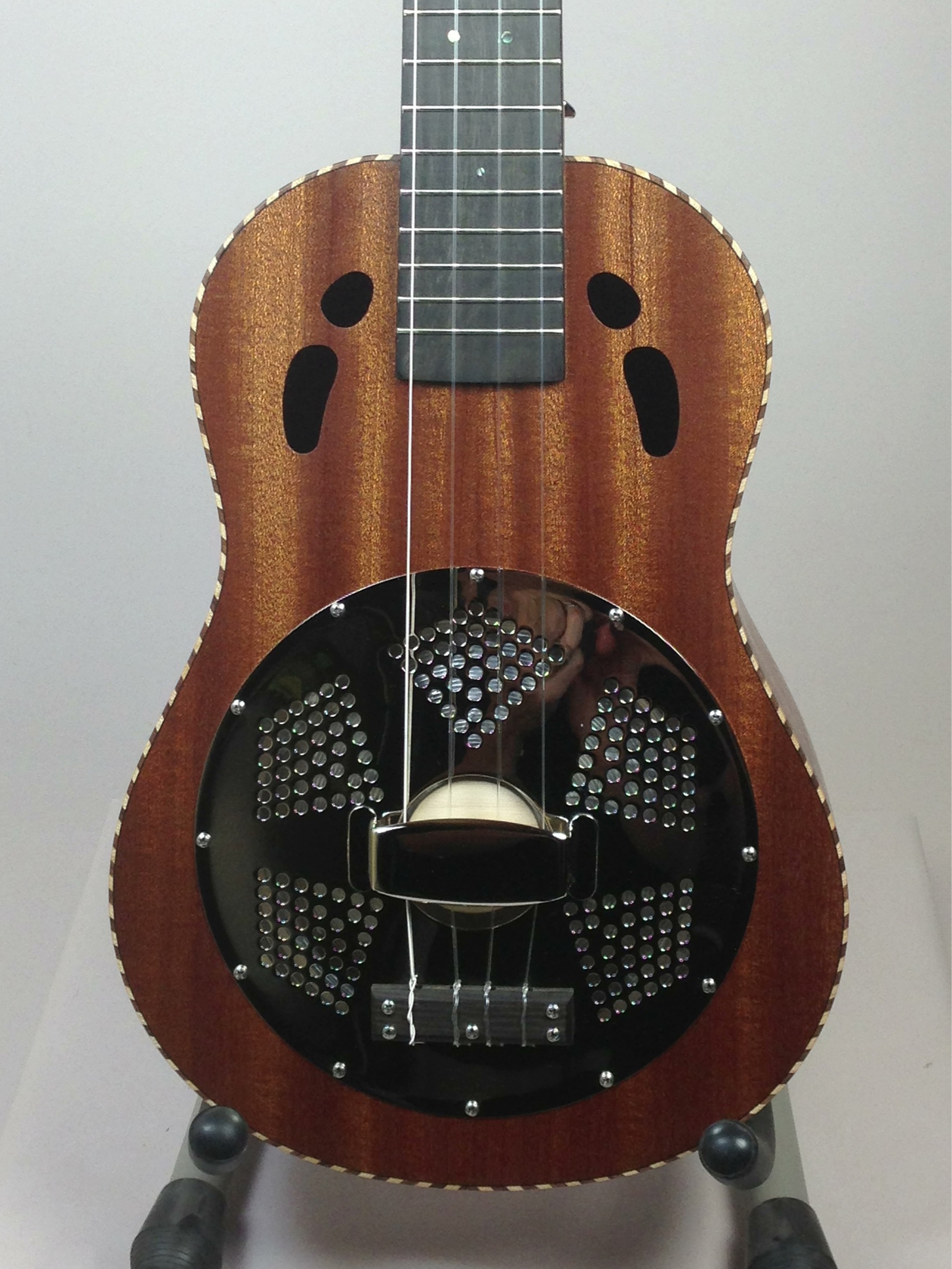

Front

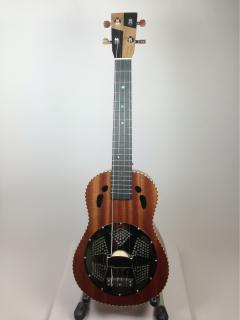

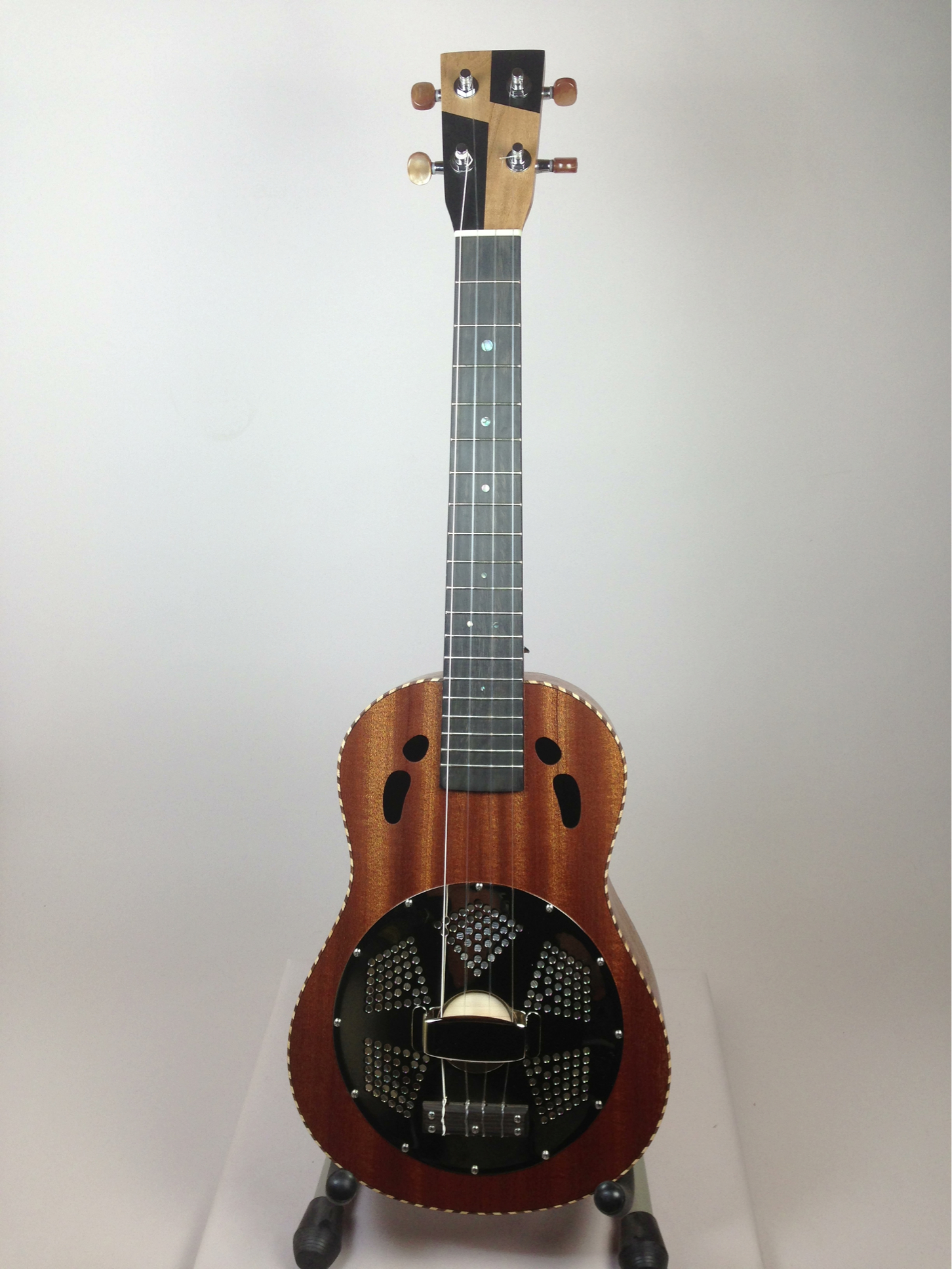

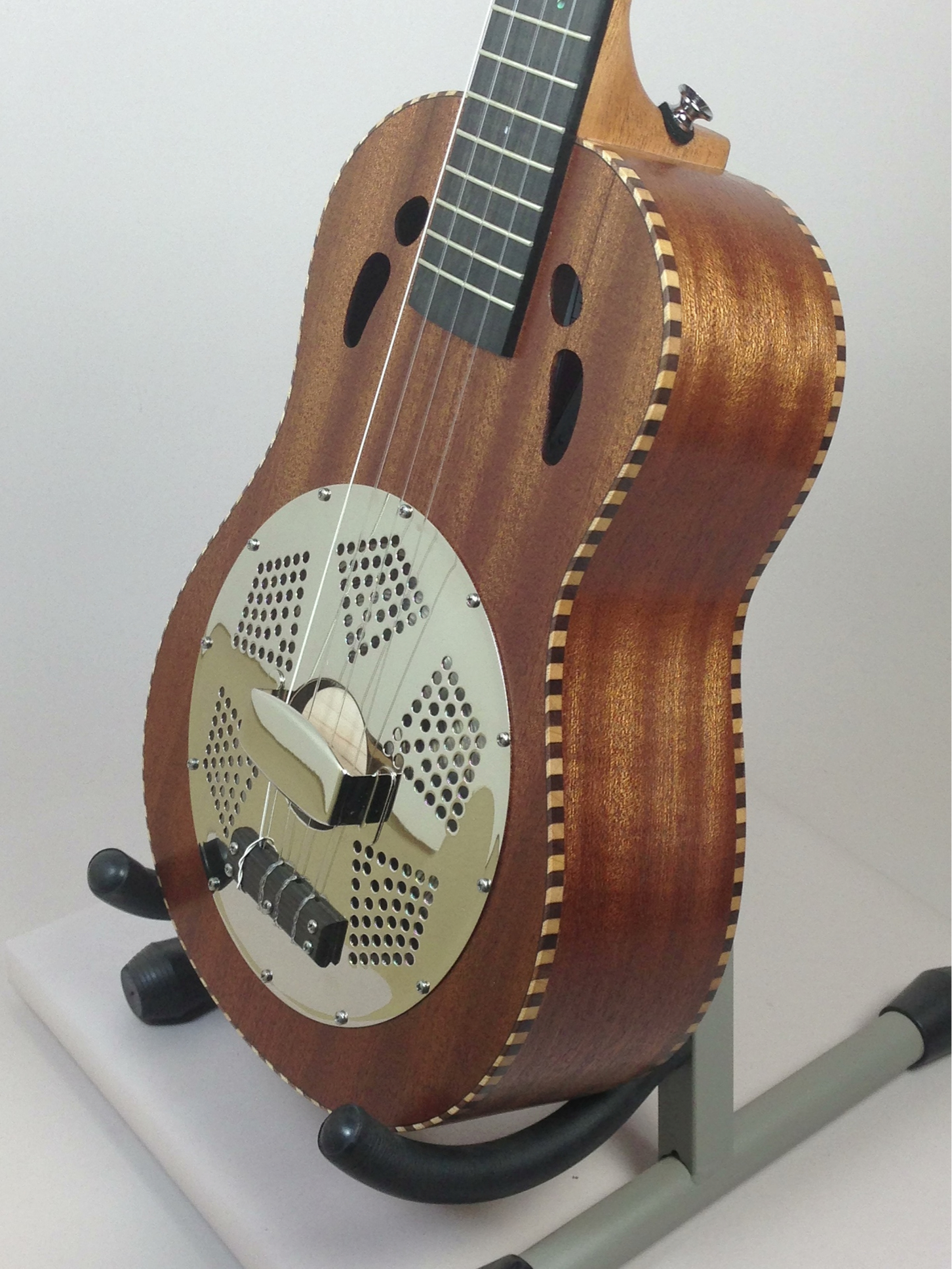

Full Front
Owner Pics & Instrument Videos
Build Schedule

Step

Description

 Picture, Click to Enlarge

1

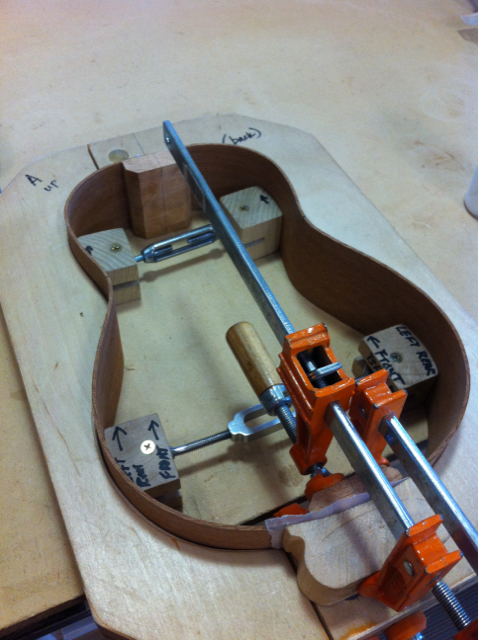

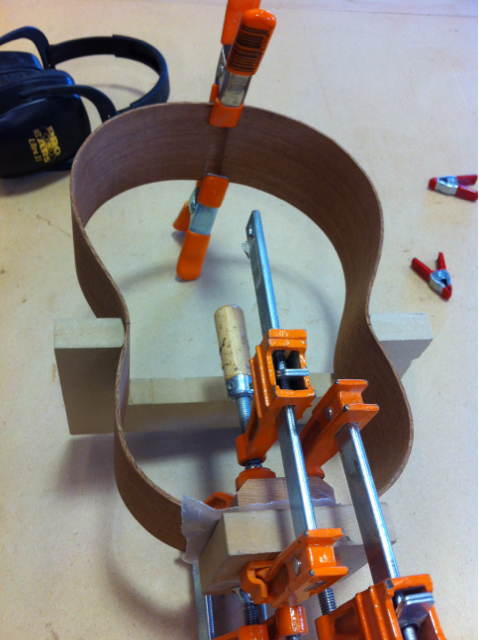

bend sides, glue in neck block

2

glue in tail block, rout sound ports in top, install soundwell

3

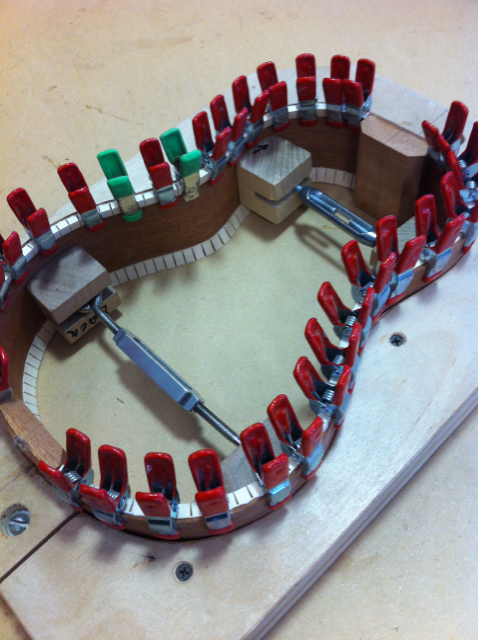

rout & glue-in end graft, kerf top edge, kerf bottom edge, join top/back plates

4

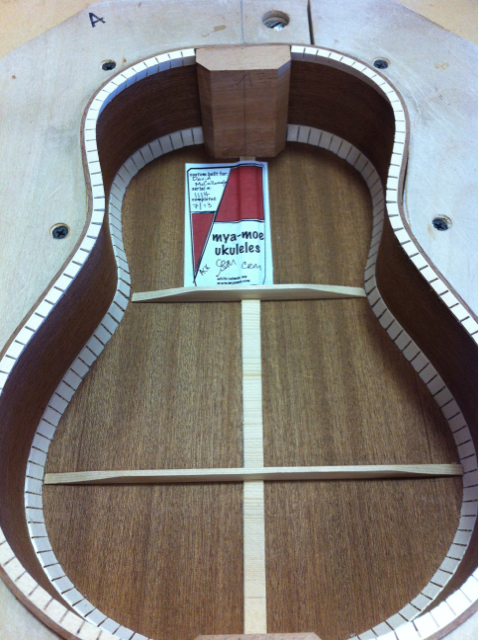

brace top/back, glue back onto sides

5

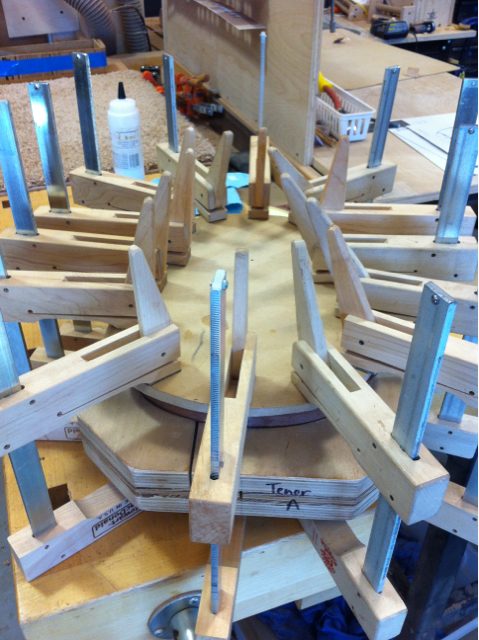

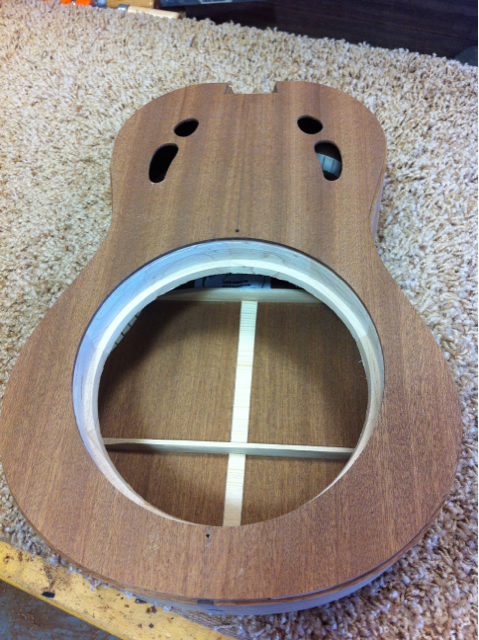

carve braces, glue top onto sides, prep fretboard & neck

6

clean up body, rout dovetail, drill tuner holes, rout binding channels, glue in top binding

7

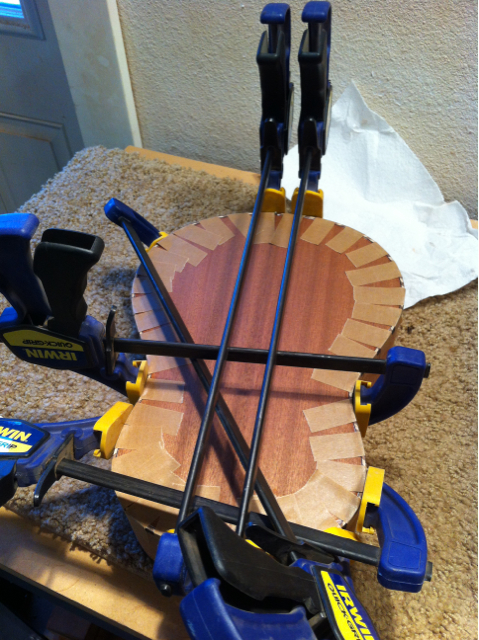

glue fretboard to neck, glue in back binding

8

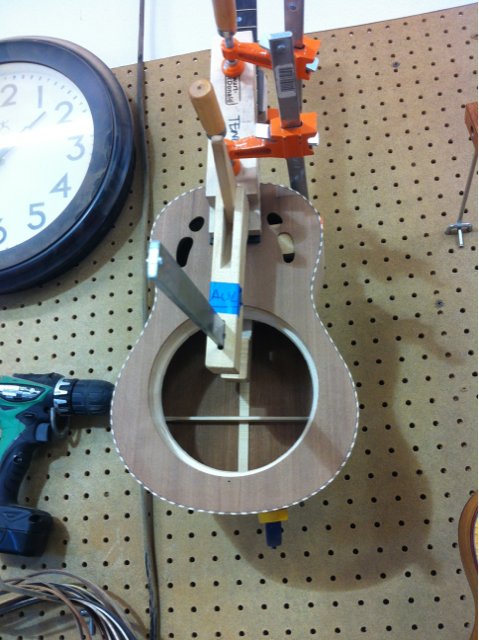

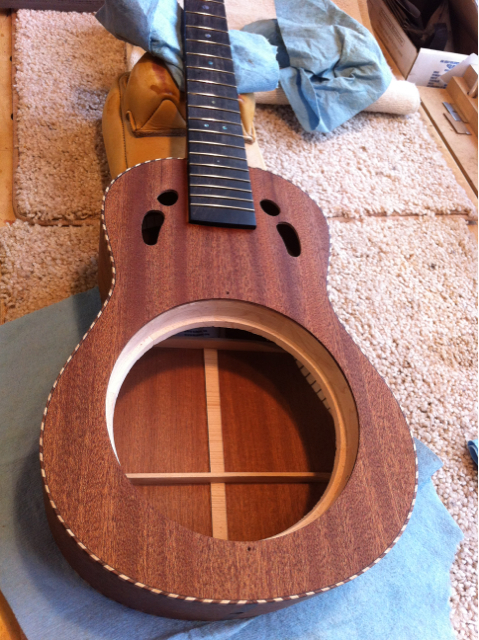

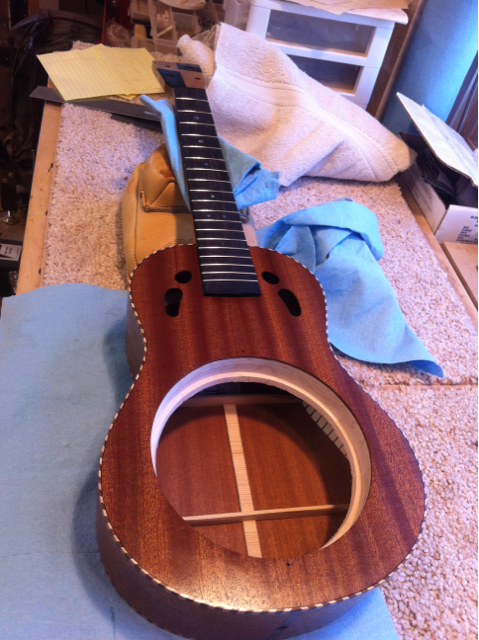

prep for finish, glue neck/fretboard onto body

9

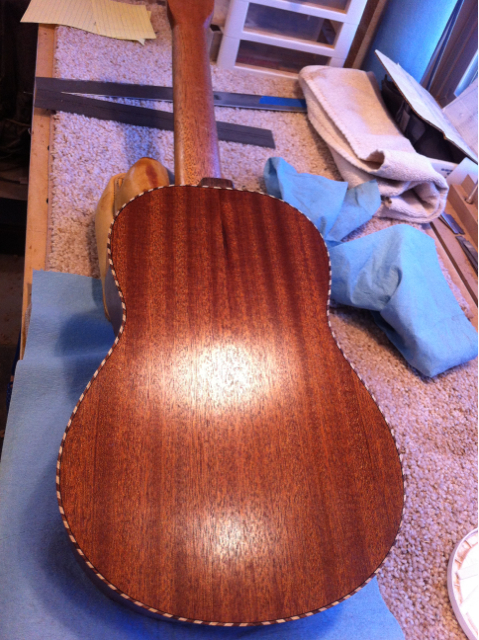

hand sand and prep for finish, first coat of oil

10

second coat of oil

11

third coat of oil

12

fourth coat of oil

13

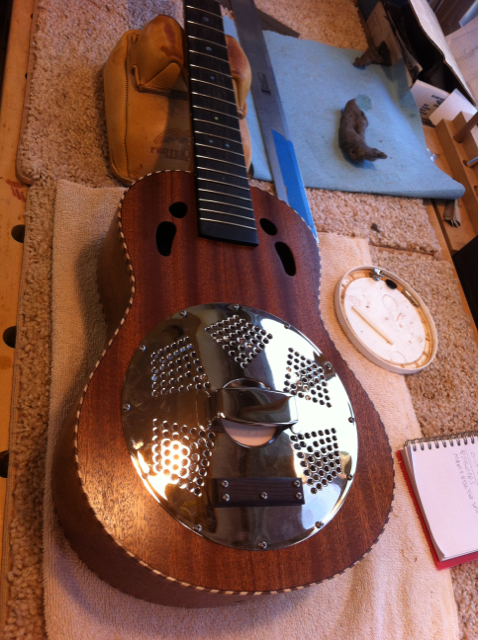

apply lemon oil, setup cone & biscuit bridge (& pickup, if any)

14

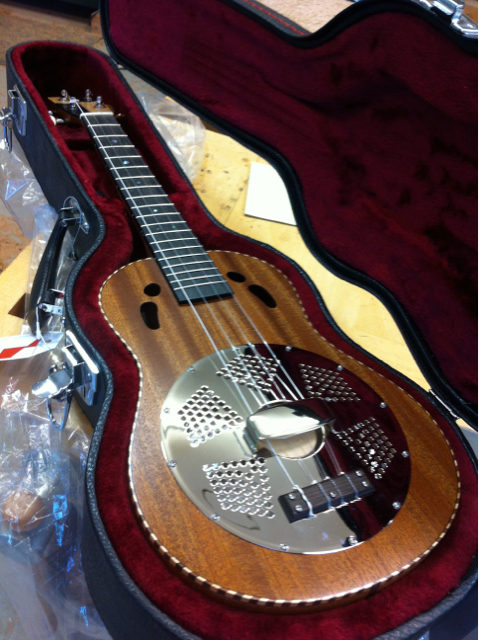

final fretwork, cut nut, put in tuners, put on strings

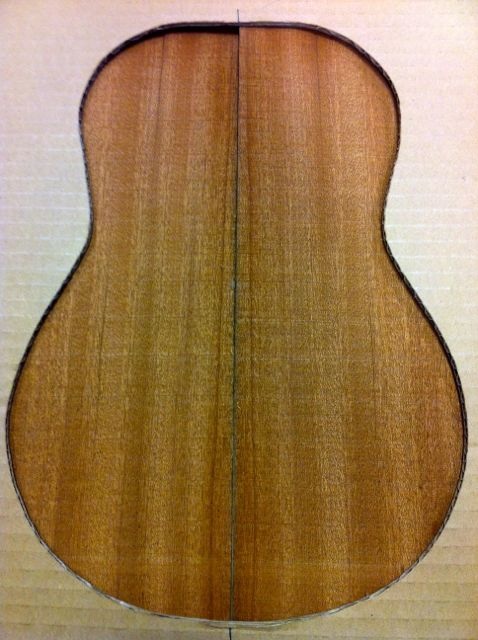

Original Wood Set
