" Char did a great job helping me make changes to my original specs, and then artfully combined it into a stunning piece of art. Truly making it live up to the name Sequoia Flame. The height of the action at both ends makes it really easy to play. Thank you Gordon and I especially like the the light highlights that show in the Pheasant wood."

- Dan N.



(scroll down for more photos)



Share this UkeTracker page on Facebook:

  • Pheasant Wood back & sides

  • Curly Redwood top

  • Ebony body binding

  • Black wood rosette

  • Hand-rubbed oil finish

  • Radiused Ebony fretboard with Ebony binding & Pearl markers

  • Mahogany neck

  • Peghed brand geared tuners

  • Custom Signature Headplate

  • K&K Twin Spot pickup

Hand-crafted in the USA by Gordon & Char Mayer and Aaron Keim. Each instrument is numbered & signed.



Wood Grade: Master
Wood Availability: Sorry, this wood is no longer available.

Cascade Series Wood Cascade Series Wood

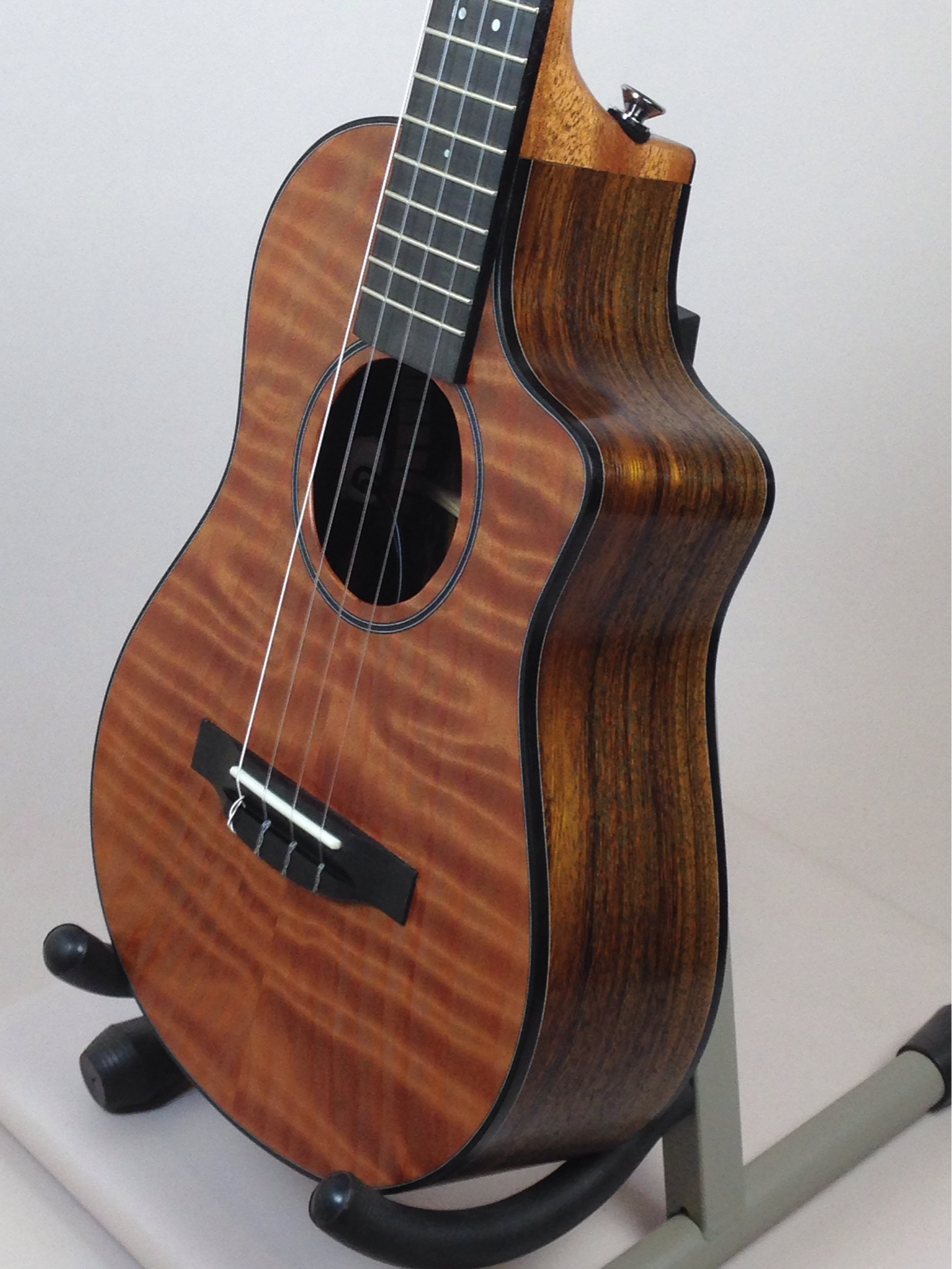

Gallery Photos (completed instrument)

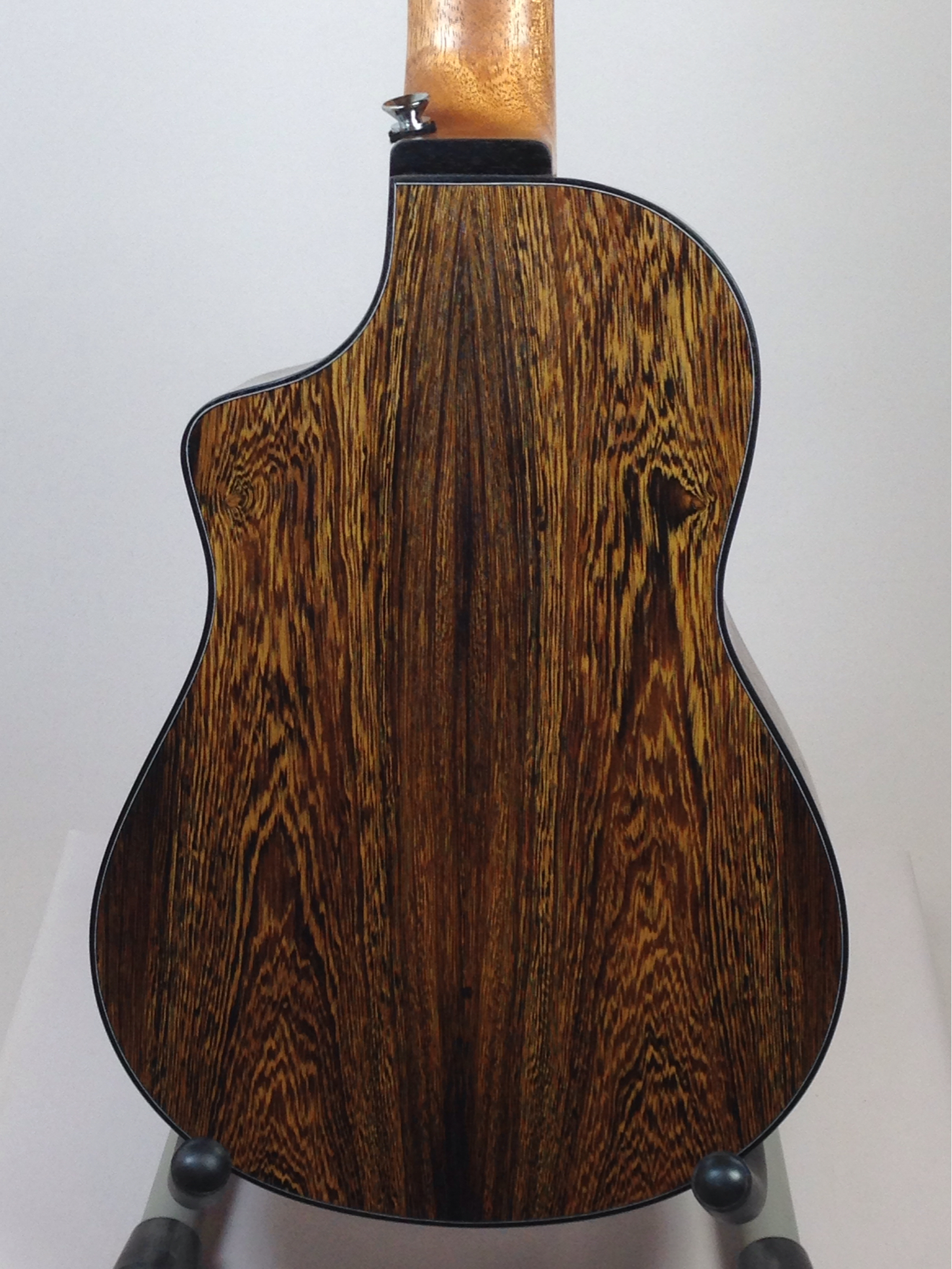

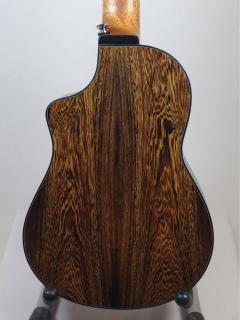

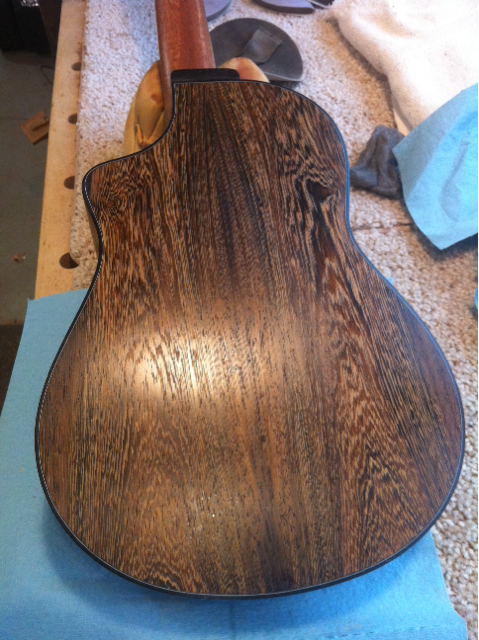

Back

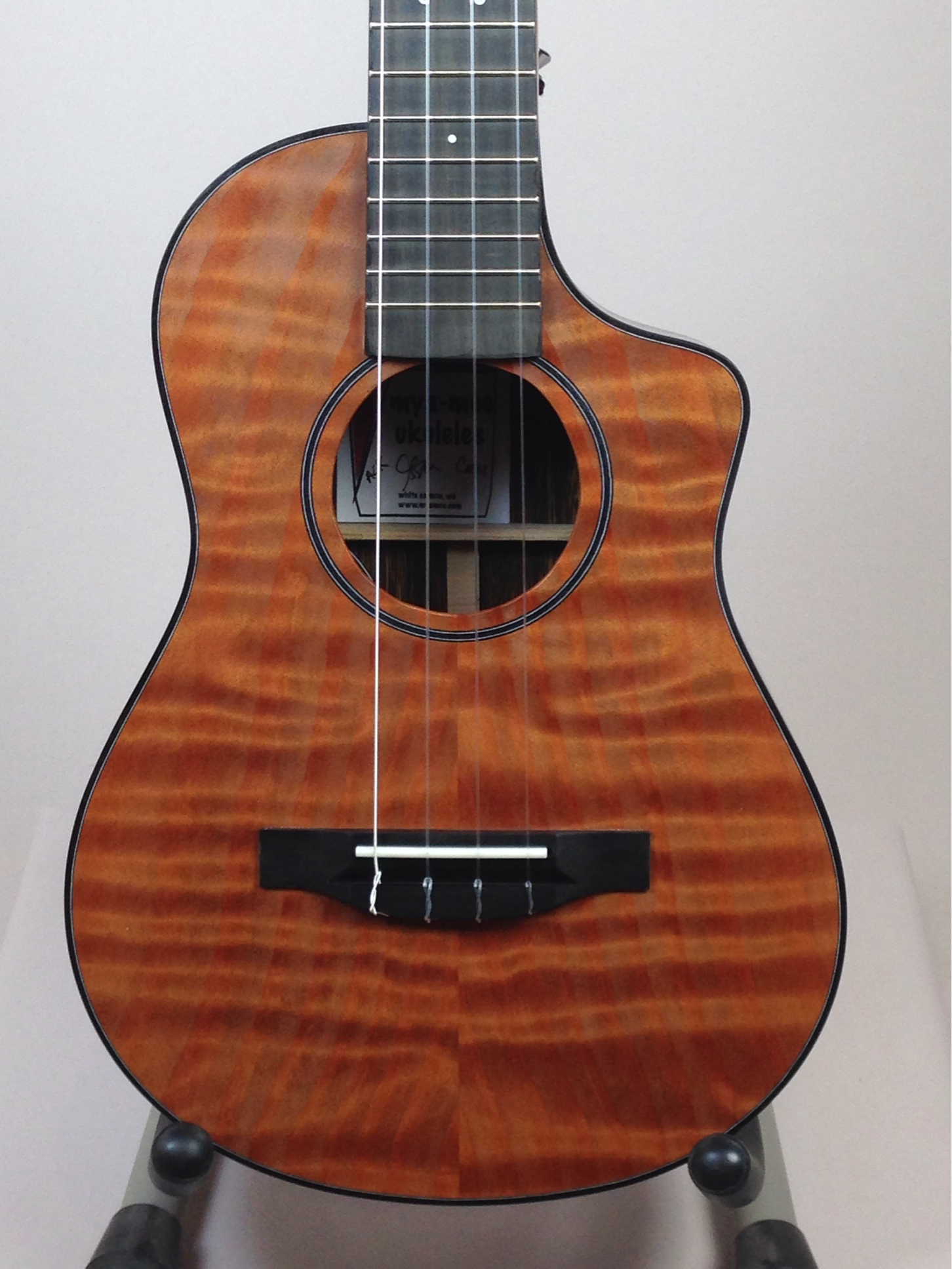

Front

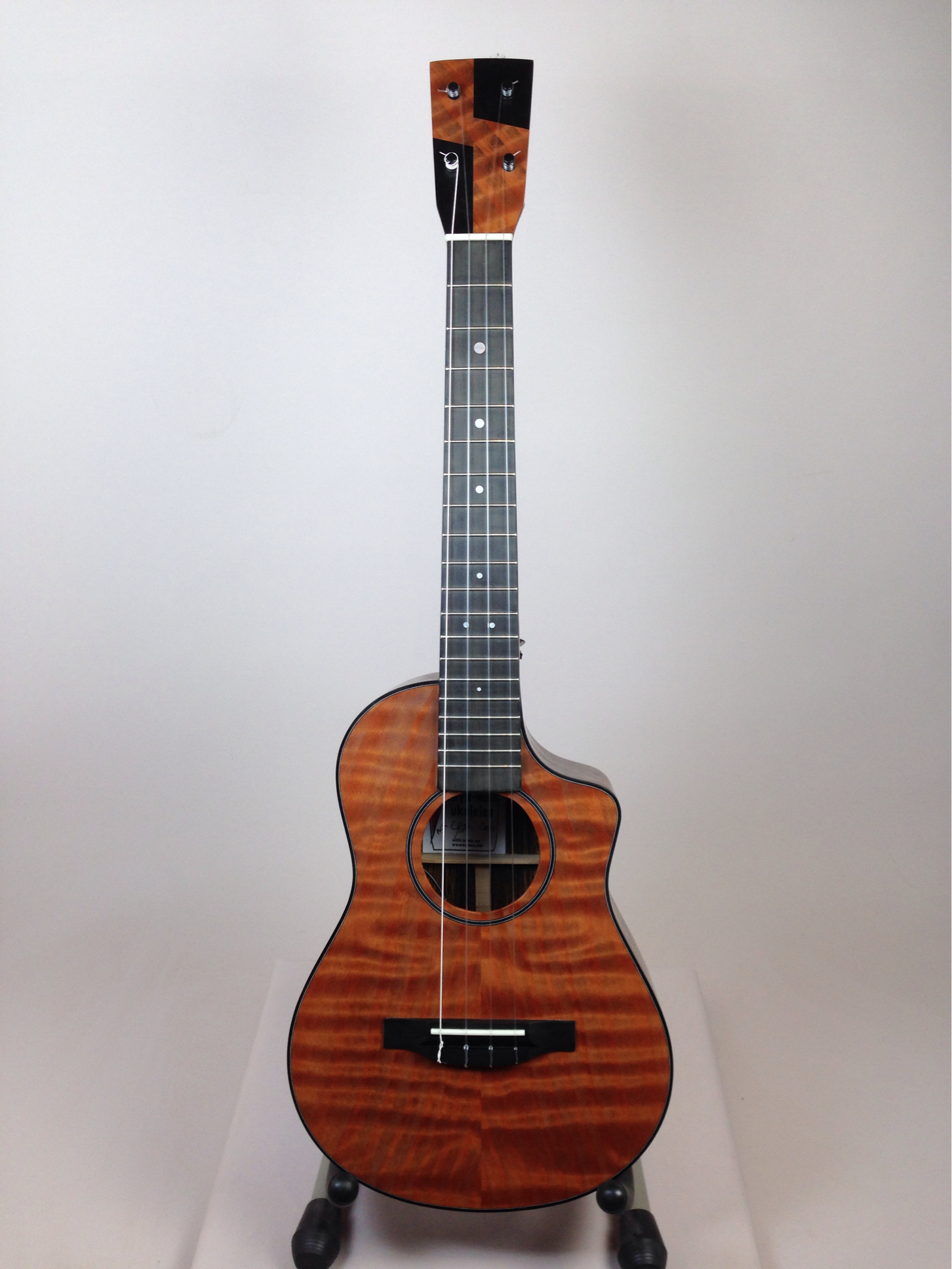

Full Front
Owner Pics & Instrument Videos
Build Schedule

Step

Description

 Picture, Click to Enlarge

1

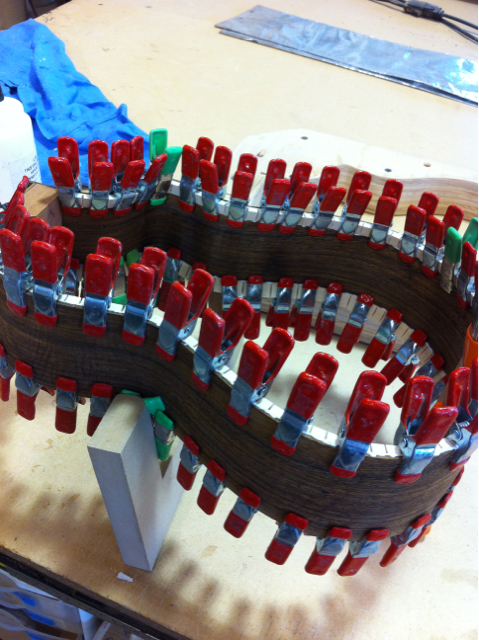

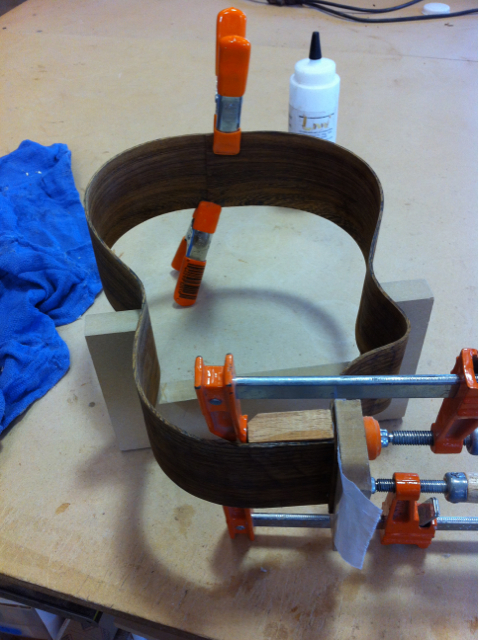

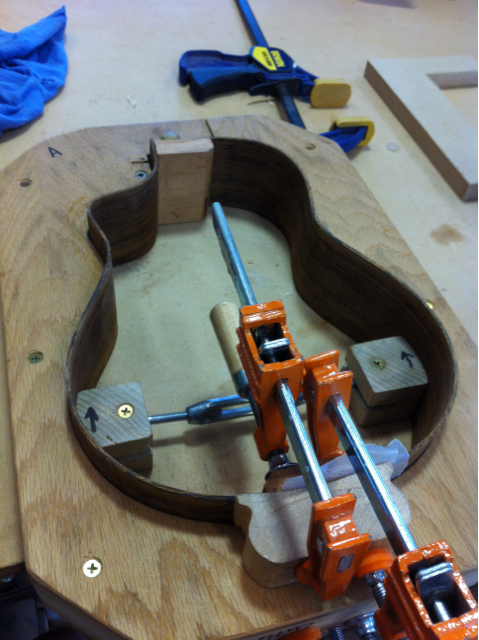

bend sides, glue in neck block

2

glue in tail block

3

rout & glue-in end graft, kerf top edge, kerf bottom edge, join top/back plates

4

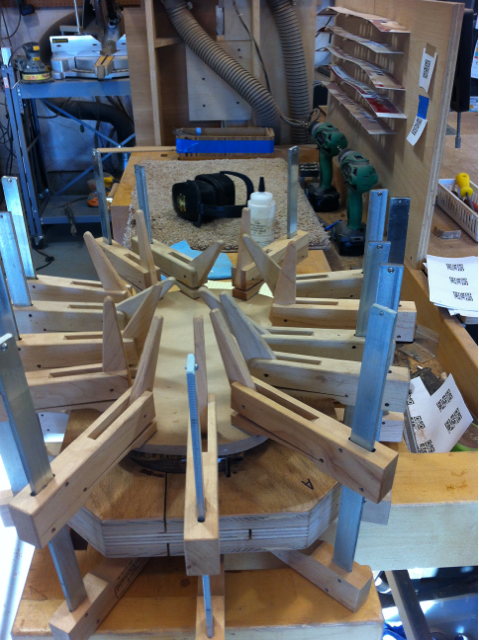

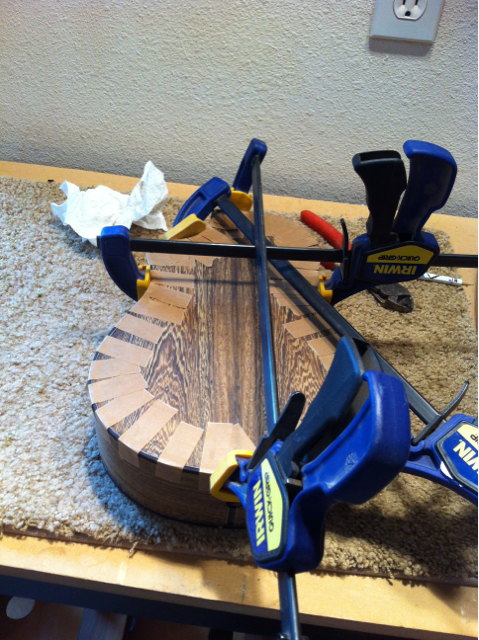

brace top/back, glue back onto sides

5

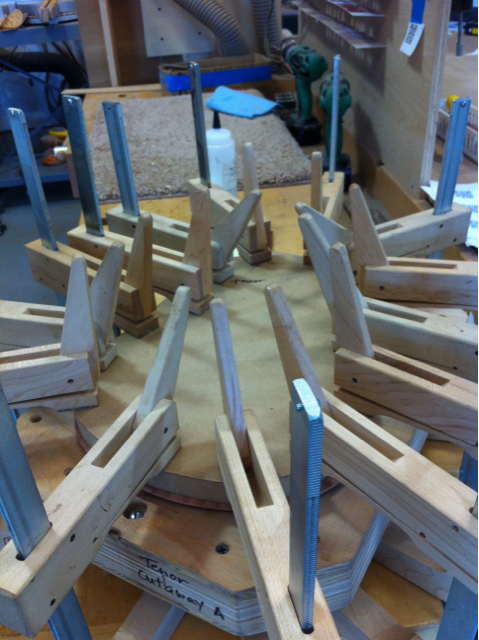

carve braces, glue top onto sides, prep fretboard & neck

6

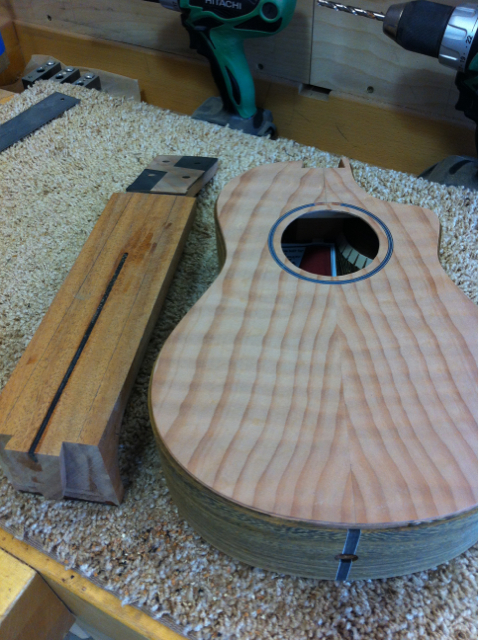

clean up body, rout dovetail, drill tuner holes, rout binding channels, glue in top binding

7

glue fretboard to neck, glue in back binding

8

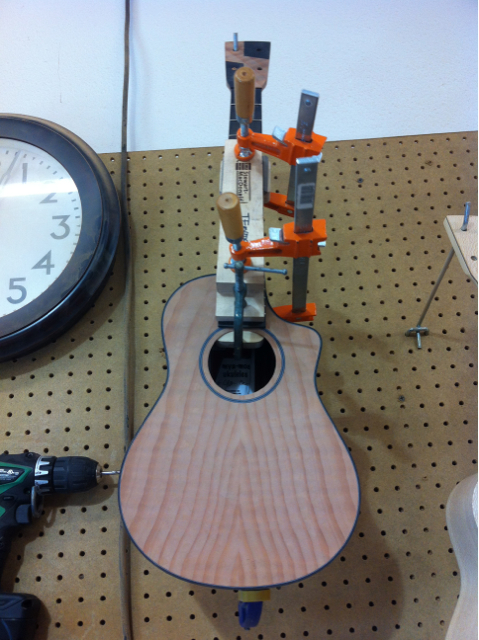

shape neck, dress fret ends, join neck to body

9

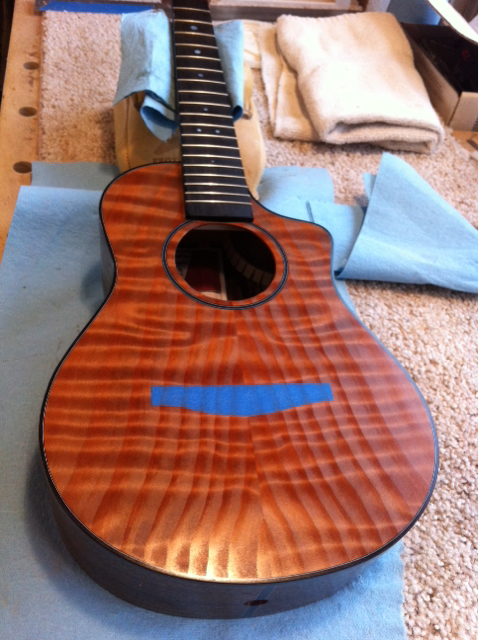

hand sand and prep for finish, first coat of oil

10

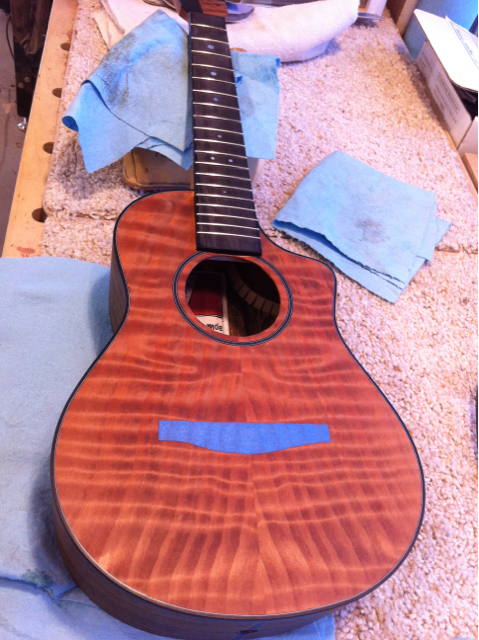

second coat of oil

11

third coat of oil

12

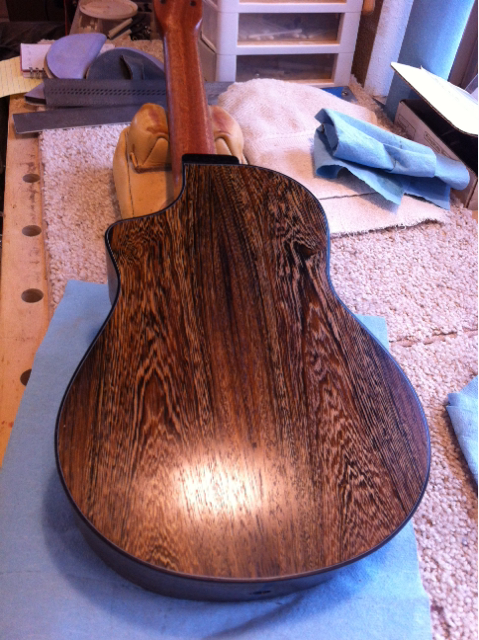

fourth coat of oil

13

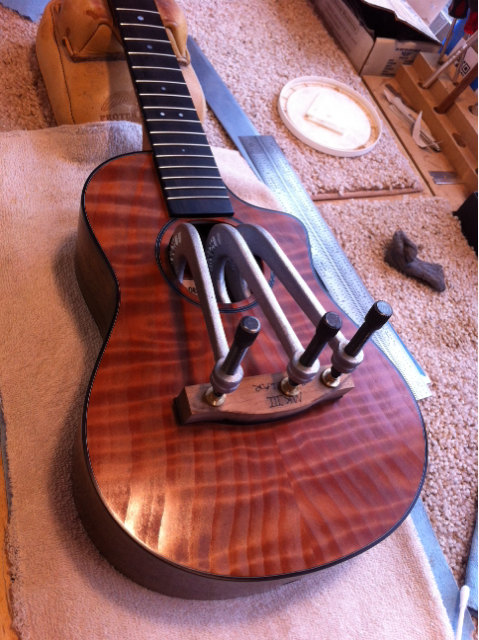

apply lemon oil, glue on bridge

14

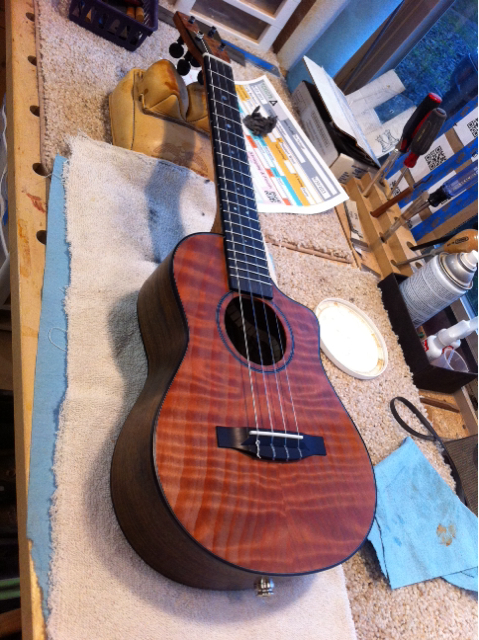

make saddle, (put in pickup, if any), cut nut, final fretwork, put in tuners, put on strings

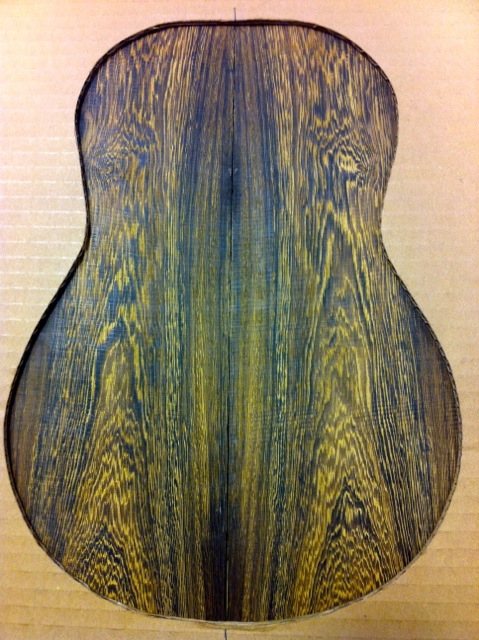

Original Wood Set
