#9 of the Secret Vault Series

  • Cocobolo back & sides

  • Biscuit Ridge Fire Port Orford Cedar top

  • Ebony body binding

  • Abalone rosette

  • Hand-rubbed oil finish

  • Radiused Ebony fretboard with Ebony binding & Abalone markers

  • Mahogany neck

  • Peghed brand geared tuners

  • Custom Signature Headplate

Hand-crafted in the USA by Gordon & Char Mayer and Aaron Keim. Each instrument is numbered & signed.



Wood Grade: Master
Wood Availability: This wood species is available. Specific wood sets vary.

Cascade Series Wood Cascade Series Wood



Gallery Photos (completed instrument)

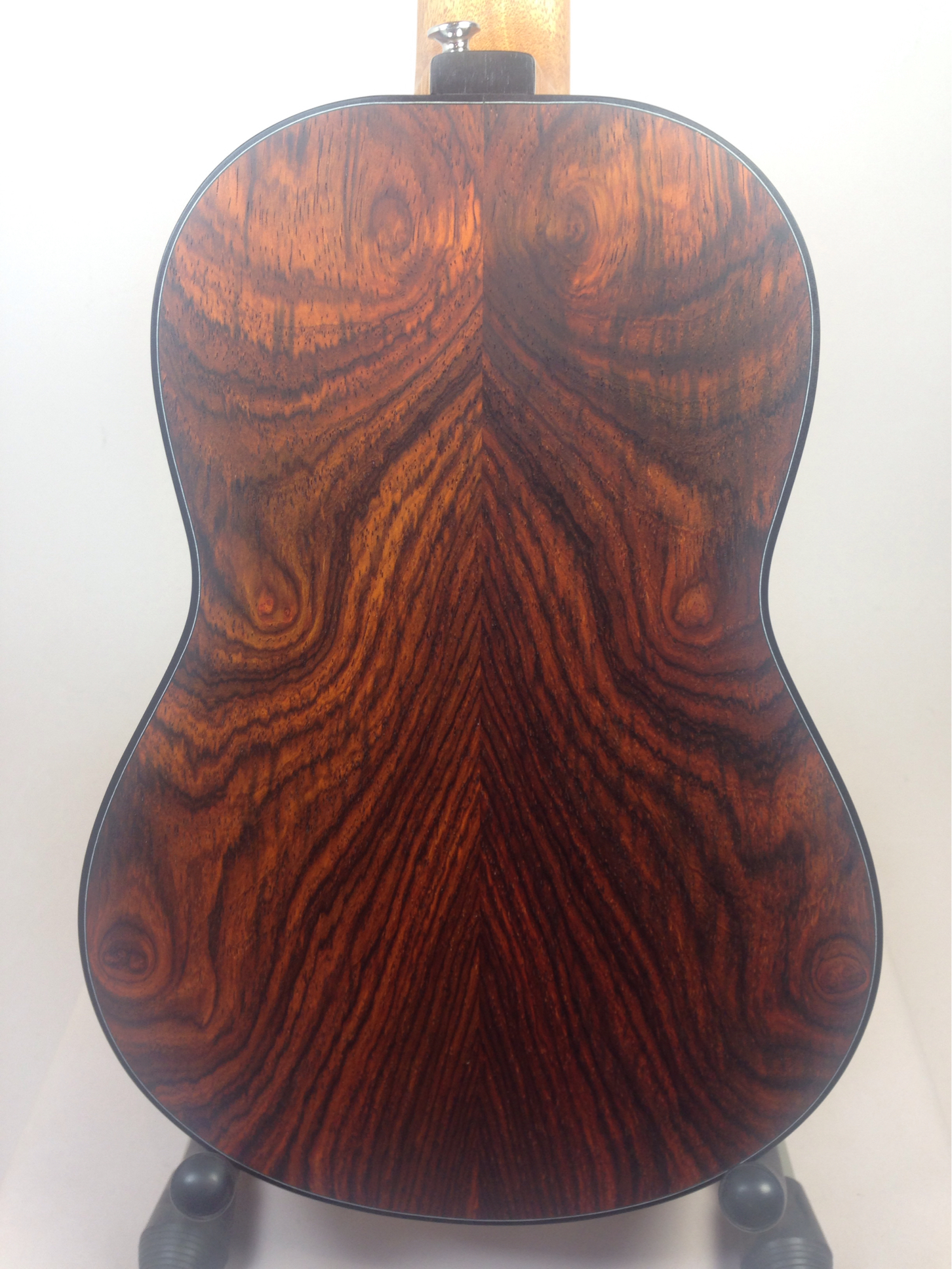

Back

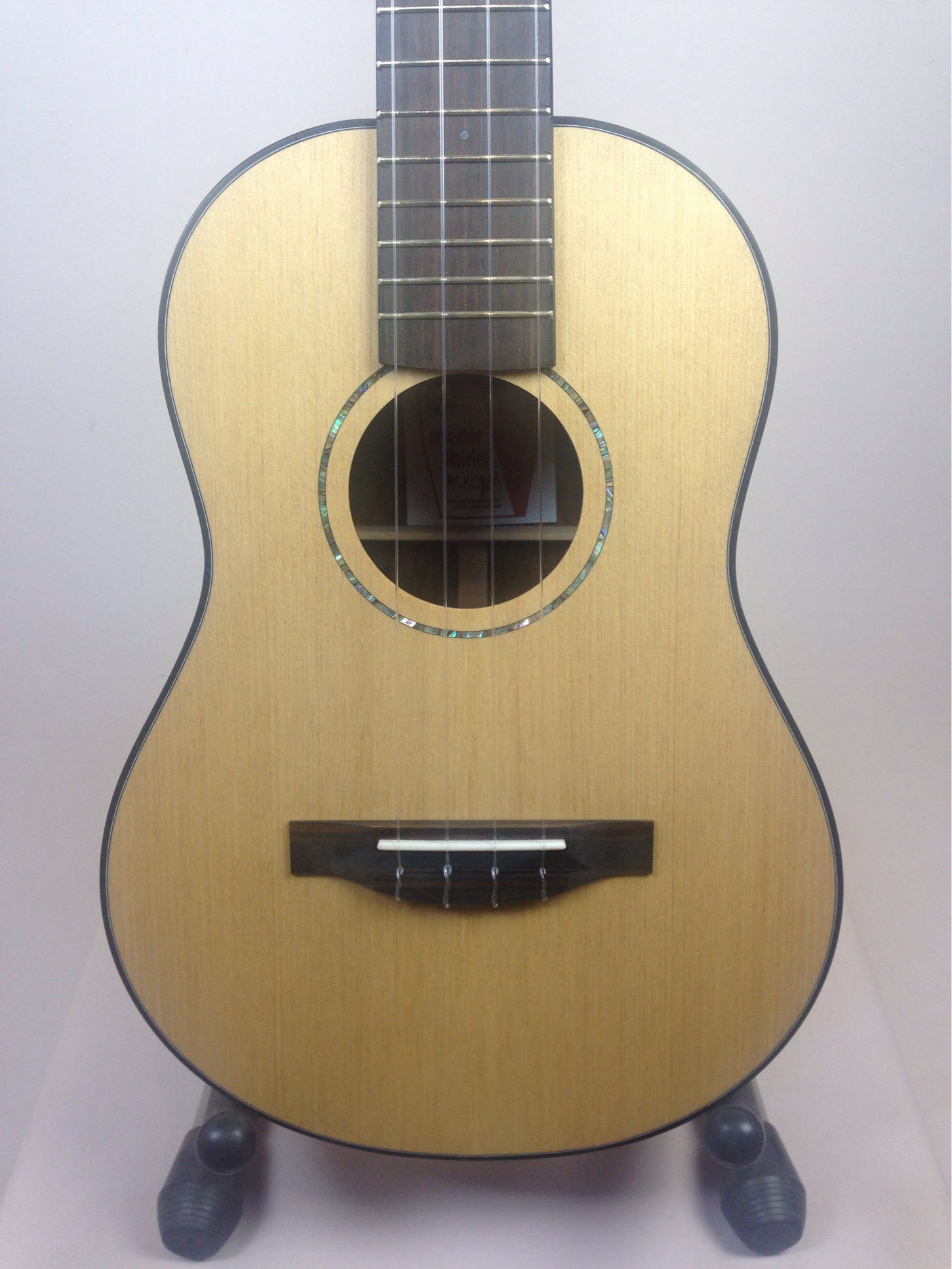

Front

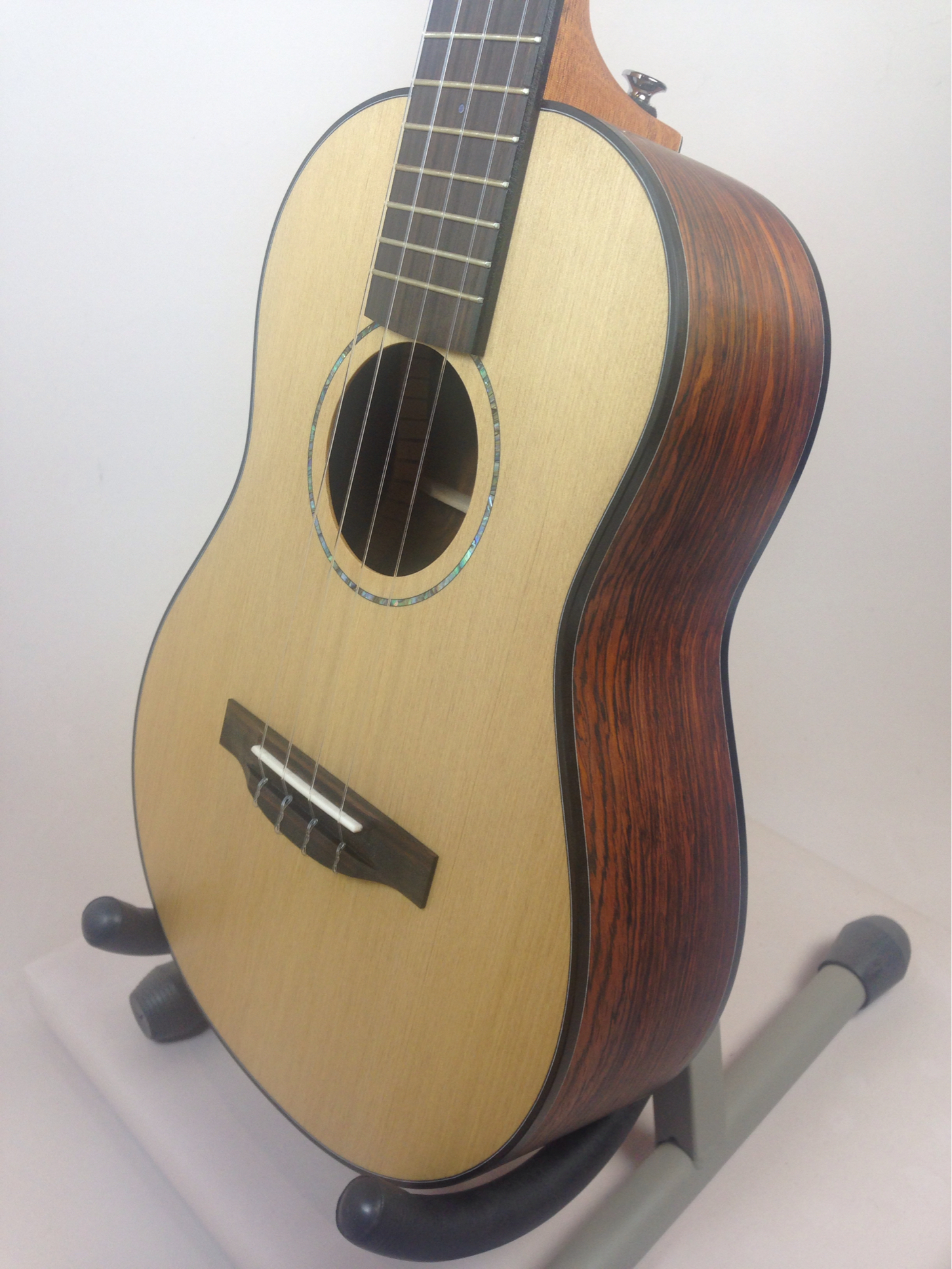

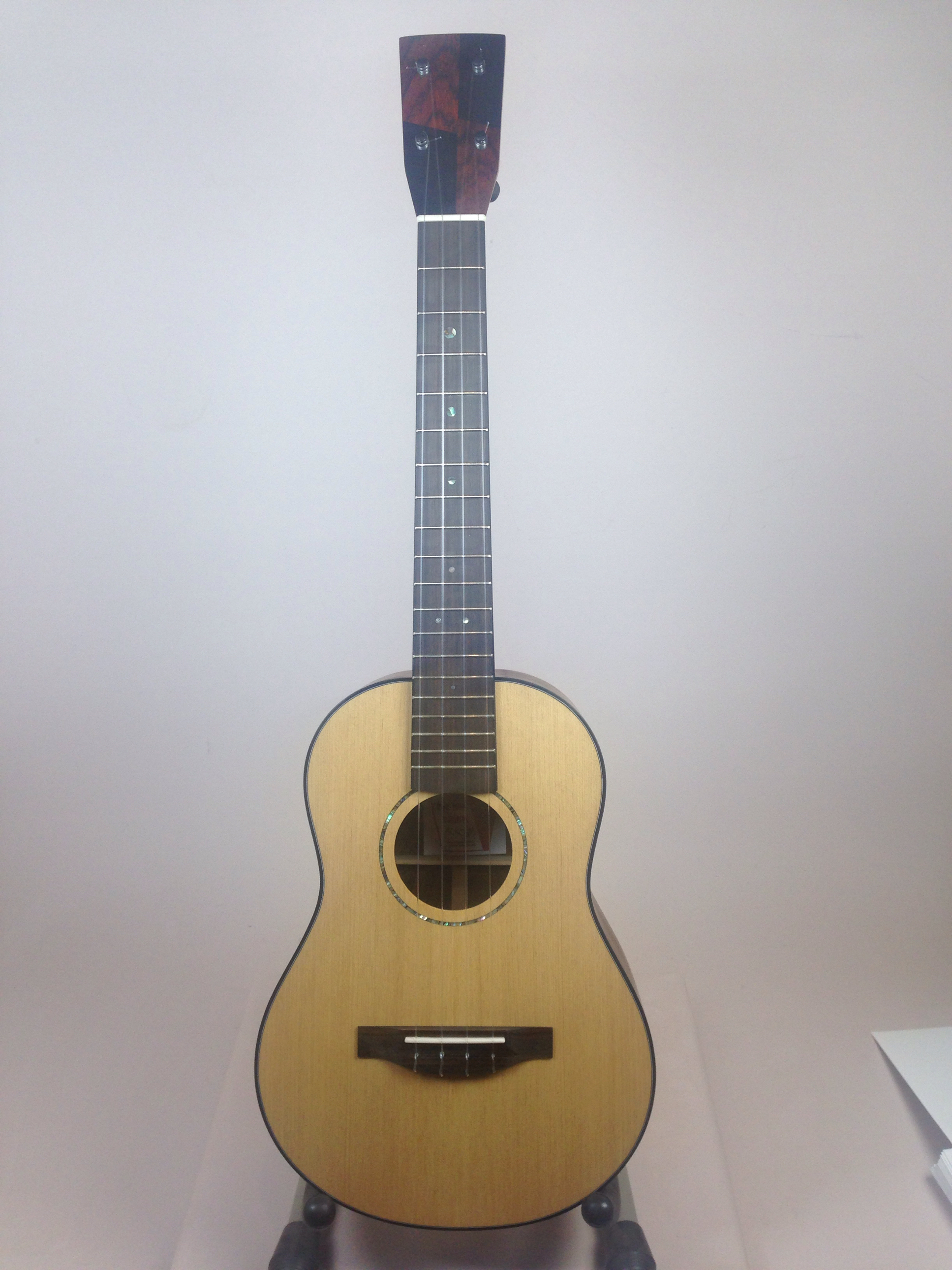

Full Front
Owner Pics & Instrument Videos

Cocobolo/Port Orford Cedar

Tenor Classic -- Secret Vault Series
Build Schedule

Step

Description

 Picture, Click to Enlarge

1

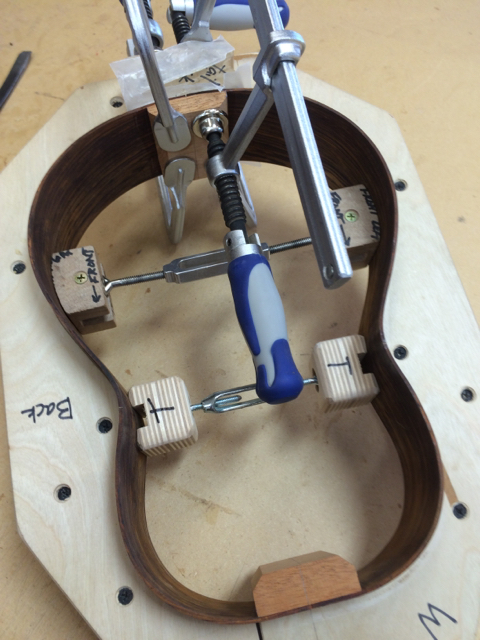

bend sides, glue in neck block

2

glue in tail block

3

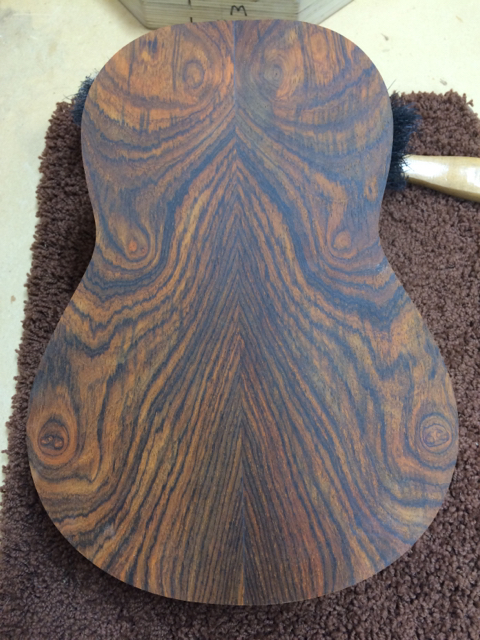

rout & glue-in end graft, kerf top edge, kerf bottom edge, brace back

4

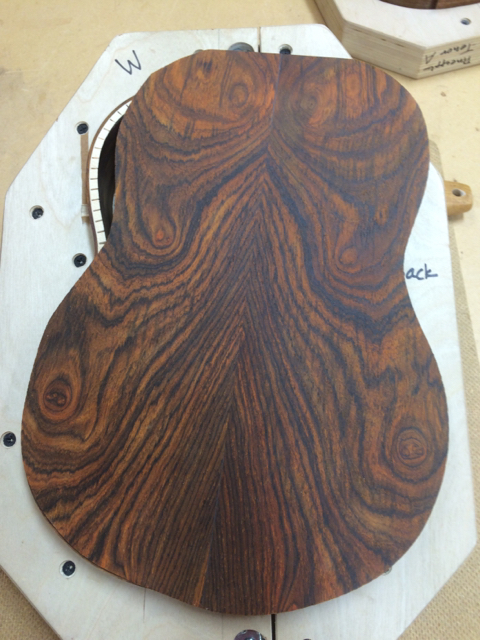

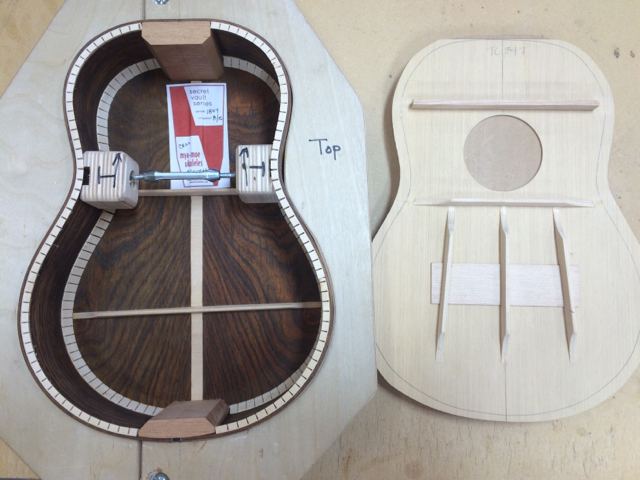

brace top, glue back onto sides

5

glue top onto sides, prep fretboard & neck

6

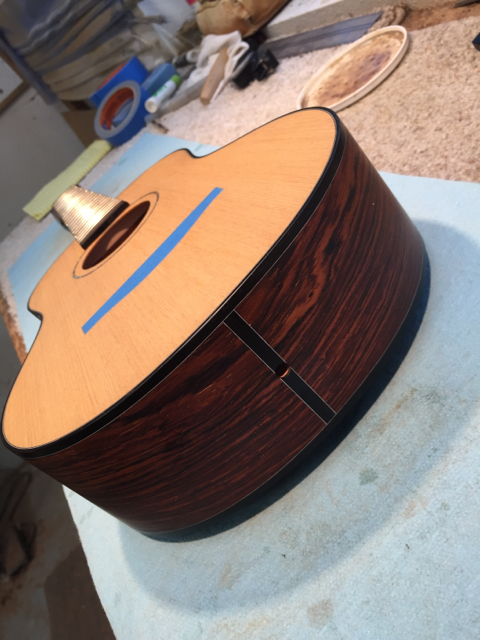

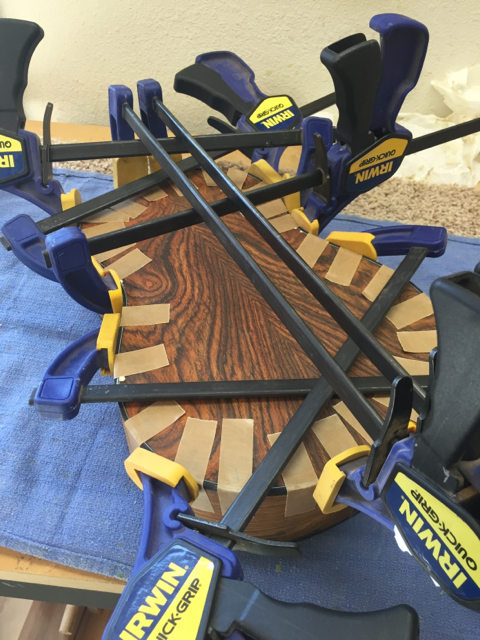

clean up body, rout dovetail, drill tuner holes, glue fretboard onto neck, rout binding channels, glue in top binding

7

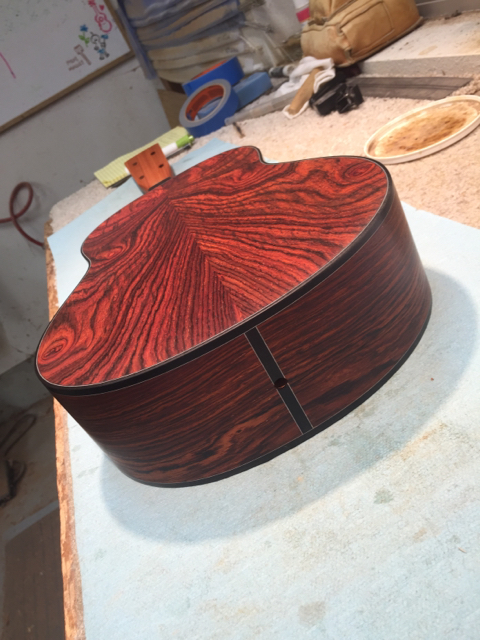

shape neck, dress fret ends, glue in back binding

8

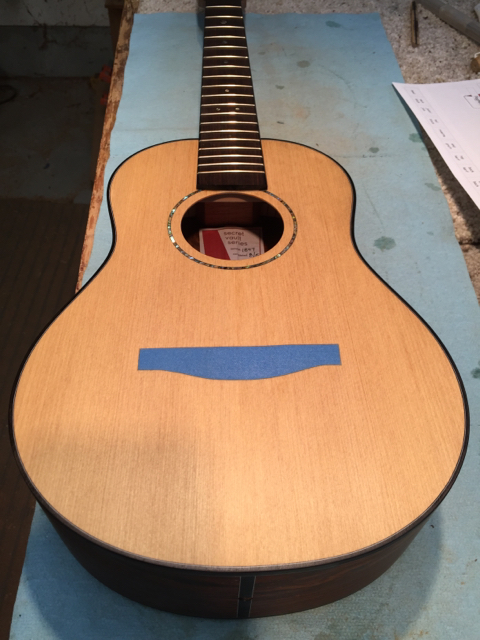

prep for finish, glue neck/fretboard onto body

9

first coat of oil

10

second coat of oil

11

third coat of oil

12

fourth coat of oil

13

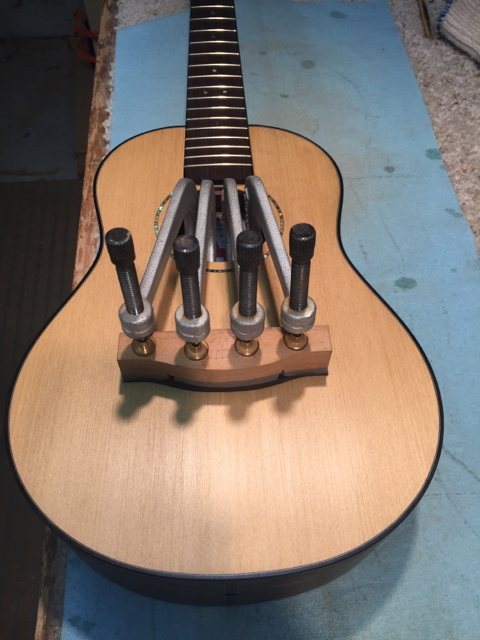

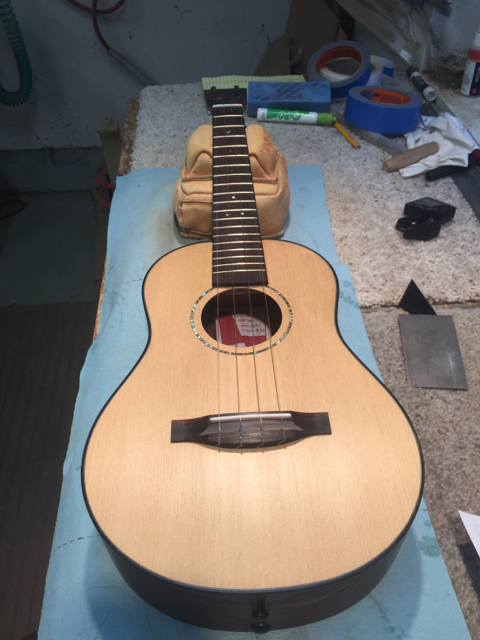

apply lemon oil, glue on bridge

14

make saddle, (put in pickup, if any), cut nut, final fretwork, put in tuners, put on strings

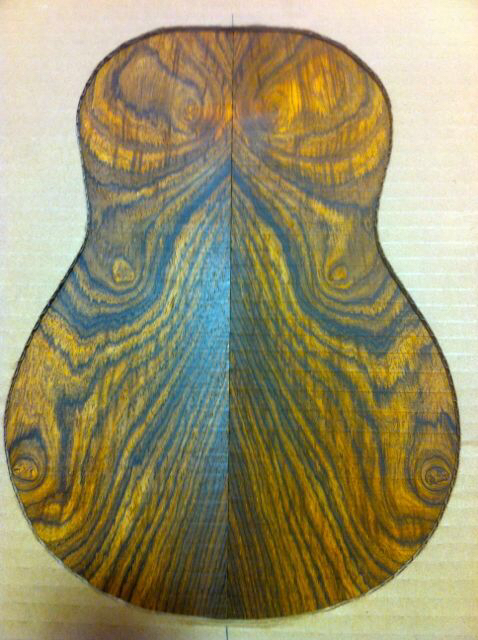

Original Wood Set
