  • Curly Myrtle top, back & sides

  • Ebony body binding

  • Hand-rubbed oil finish

  • Radiused Ebony fretboard with Ebony binding & Pearl markers

  • Mahogany neck

  • Peghed brand geared tuners

  • Leopardwood & Maple Signature Headplate

  • K&K Biscuit Bridge pickup

Hand-crafted in the USA by Gordon & Char Mayer. Each instrument is numbered & signed.



Wood Grade: Classic
Wood Availability: This wood species is available. Specific wood sets vary.

Cascade Series Wood Cascade Series Wood



Gallery Photos (completed instrument)

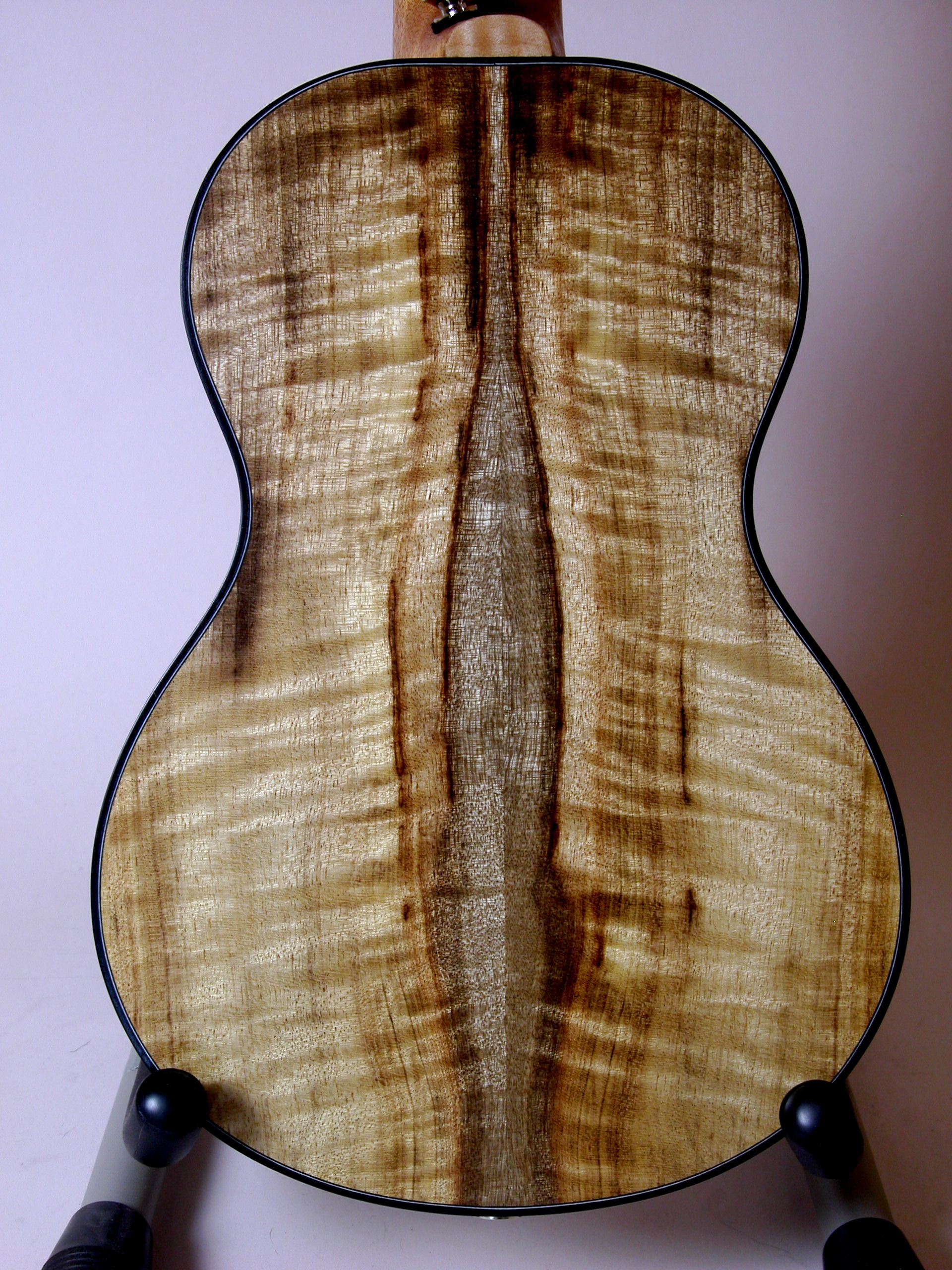

Back

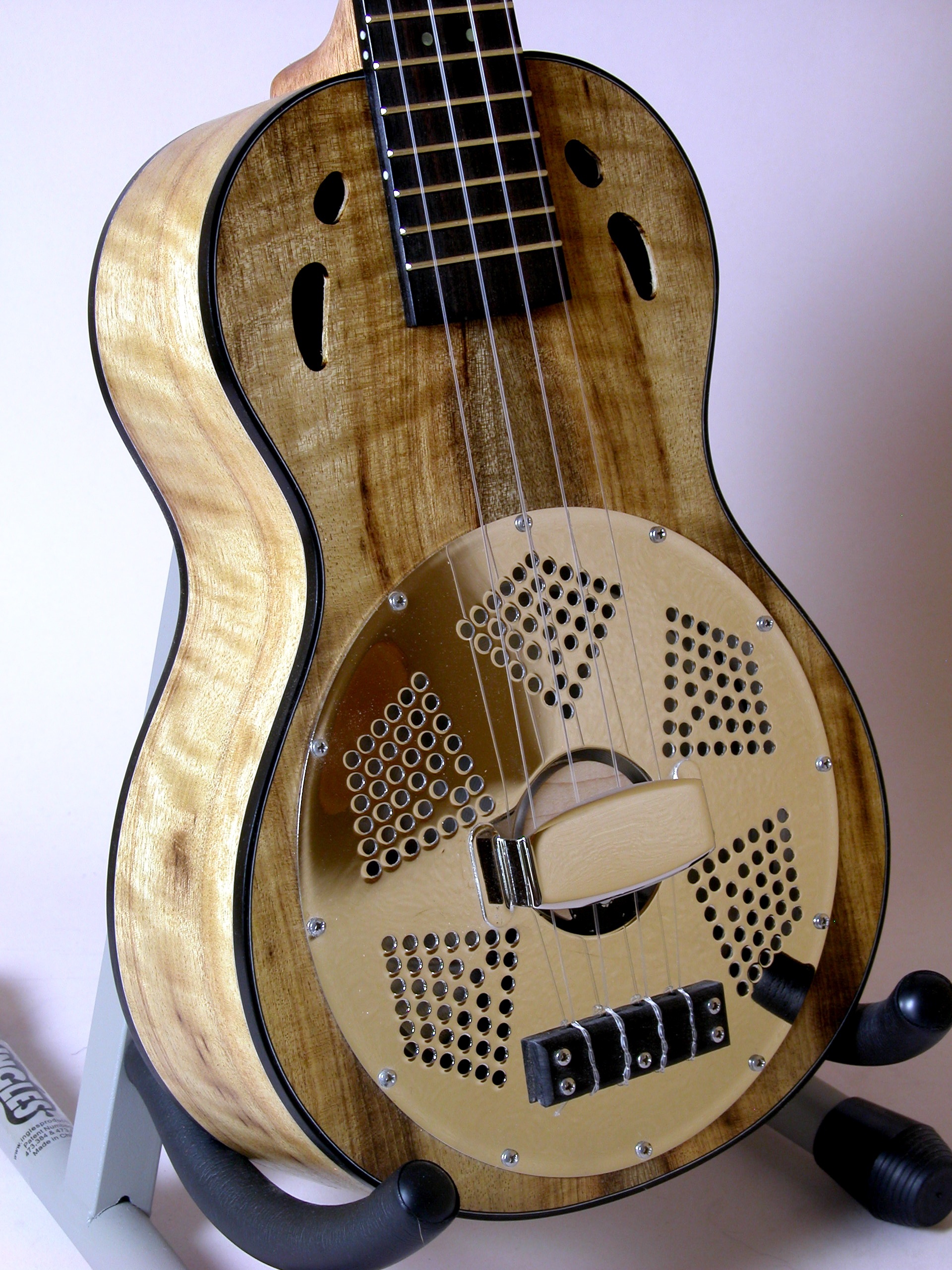

Front

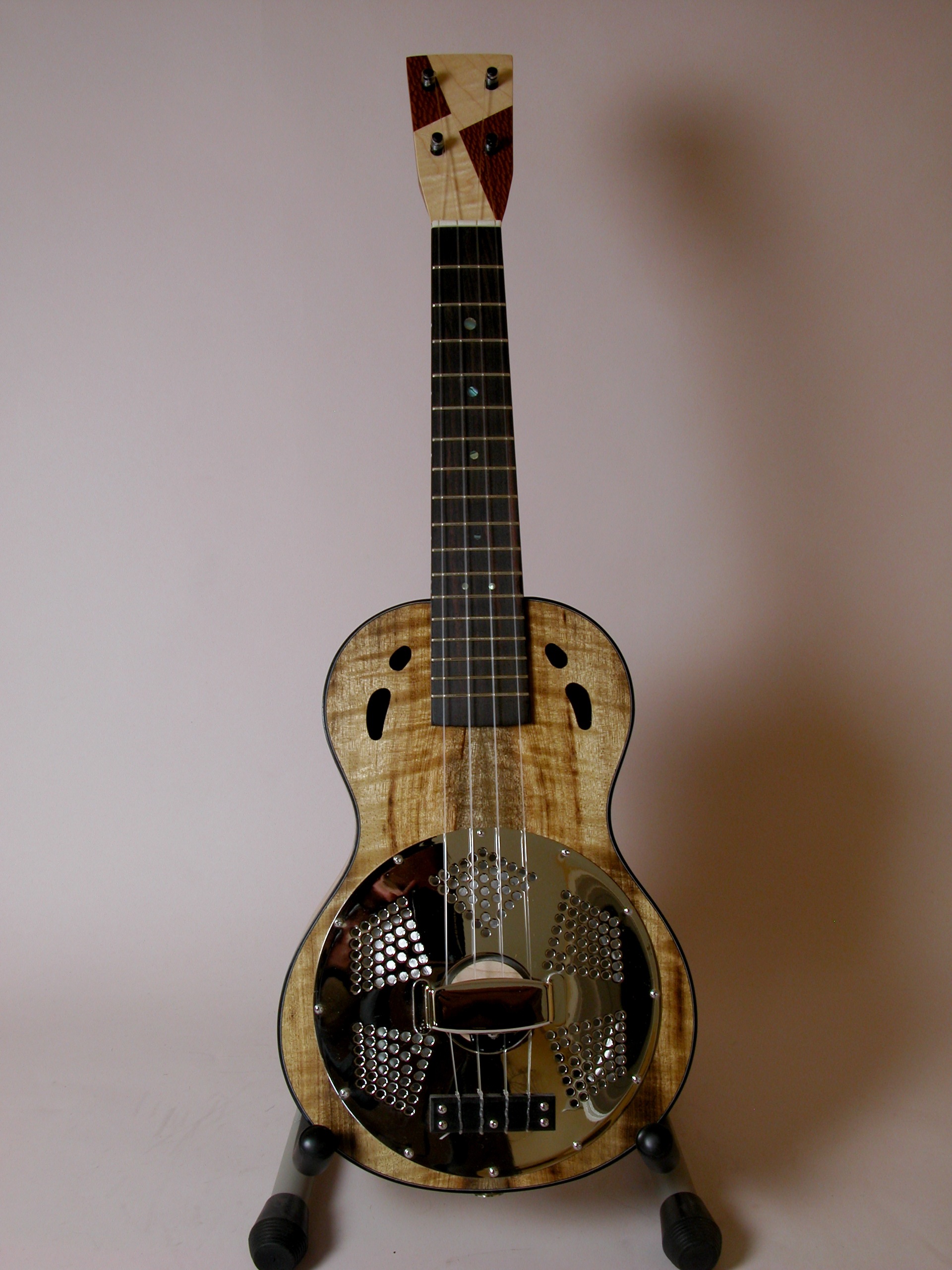

Full Front
Owner Pics & Instrument Videos

Rev Hank

Rev Hank tearing it up with his Myrtle Concert Resonator
Build Schedule

Step

Description

 Picture, Click to Enlarge

1

bend sides, glue in neck block



2

glue in tail block, rout sound ports in top, install soundwell



3

rout & glue-in end graft, kerf top edge, kerf bottom edge, join top/back plates



4

brace top/back, glue back onto sides



5

carve braces, glue top onto sides, prep fretboard & neck



6

clean up body, rout dovetail, drill tuner holes, rout binding channels, glue in top binding



7

glue fretboard to neck, glue in back binding



8

prep for finish, glue neck/fretboard onto body



9

hand sand and prep for finish, first coat of oil



10

second coat of oil



11

third coat of oil



12

fourth coat of oil



13

apply lemon oil, setup cone & biscuit bridge (& pickup, if any)



14

final fretwork, cut nut, put in tuners, put on strings
