  • Mango top, back & sides

  • Bloodwood body binding

  • Hand-rubbed oil finish

  • Radiused Mesquite fretboard with Bloodwood binding & Abalone markers

  • Walnut neck

  • Gotoh UPT 4:1 Planetary gear tuners

  • Custom Signature Headplate

Hand-crafted in the USA by Cary Kelly. Each instrument is numbered & signed.



Wood Grade: Tradition
Wood Availability: This wood species is available. Specific wood sets vary.



Gallery Photos (completed instrument)

Back

Front

Full Front
Owner Pics & Instrument Videos

Michael August

Demo of Mango Tenor Resornator, #2901

Build Schedule

Step

Description

 Picture, Click to Enlarge

1

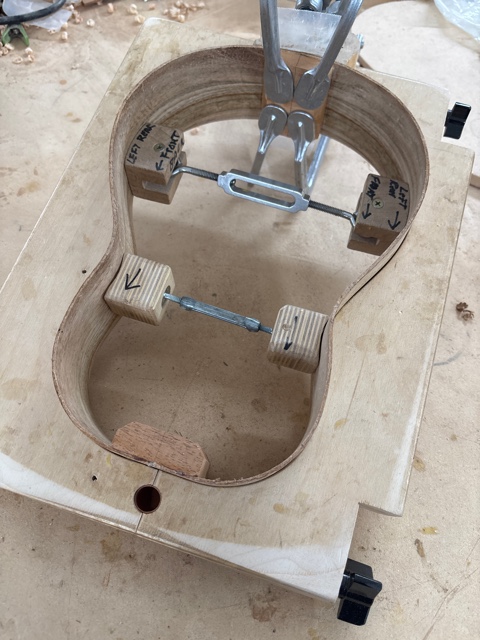

bend sides, glue in neck block

2

glue in tail block, rout sound ports in top, install soundwell

3

rout & glue-in end graft, kerf top edge, kerf bottom edge, brace back

4

brace top, glue back onto sides

5

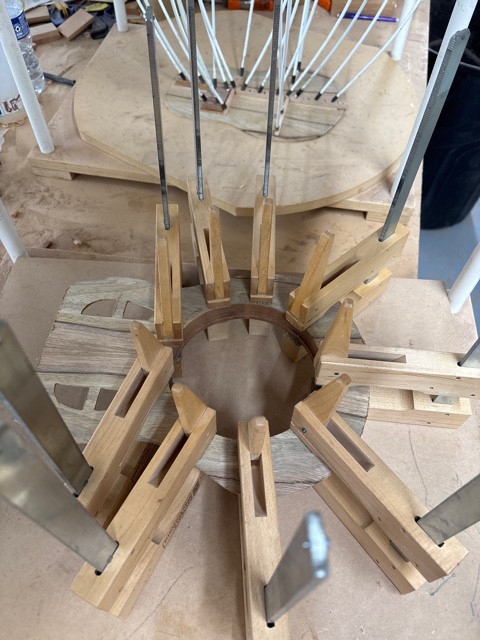

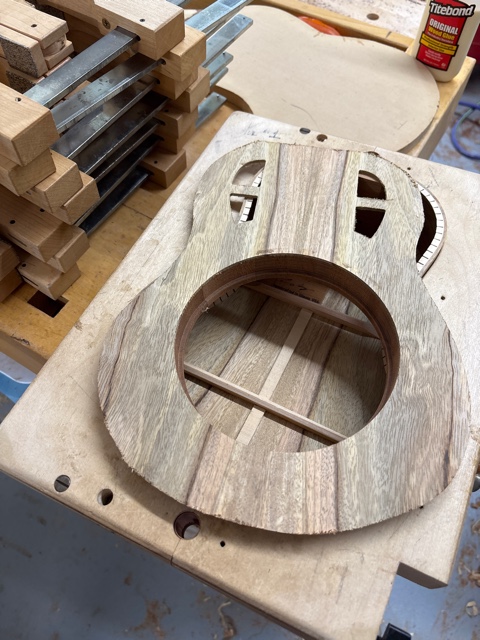

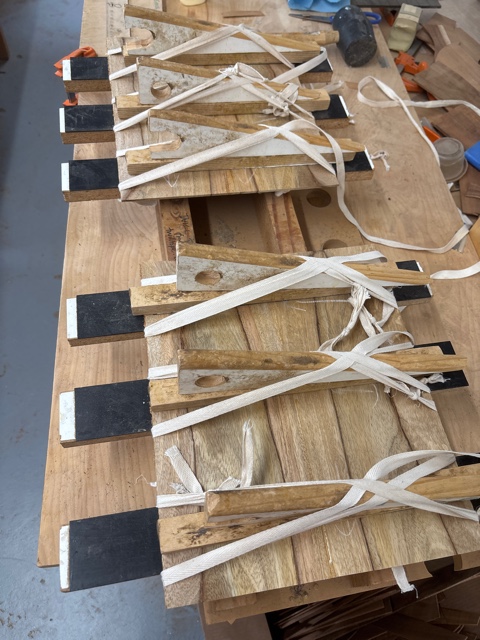

glue top onto sides, prep fretboard & neck

6

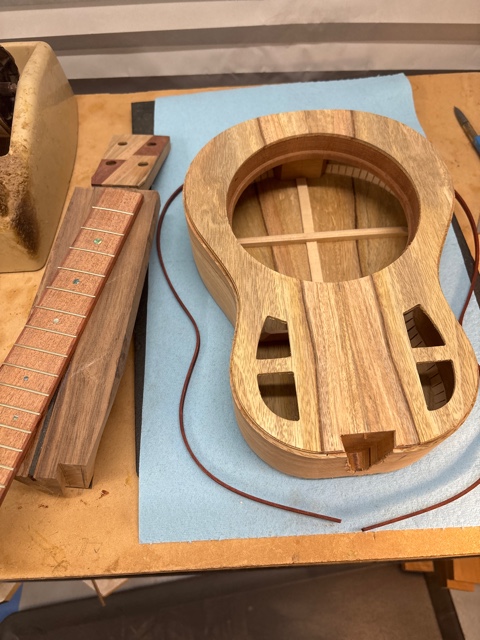

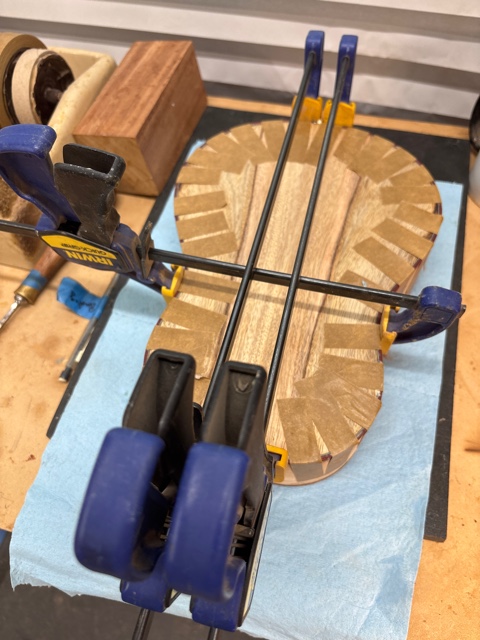

clean up body, rout dovetail, drill tuner holes, glue fretboard onto neck, rout binding channels, glue in top binding

7

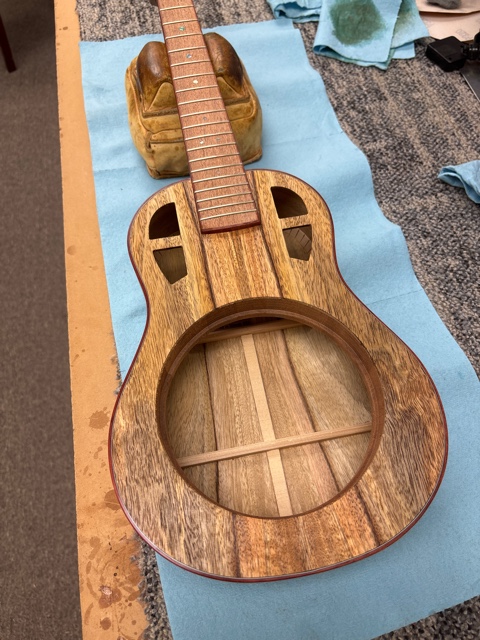

shape neck, dress fret ends, glue in back binding

8

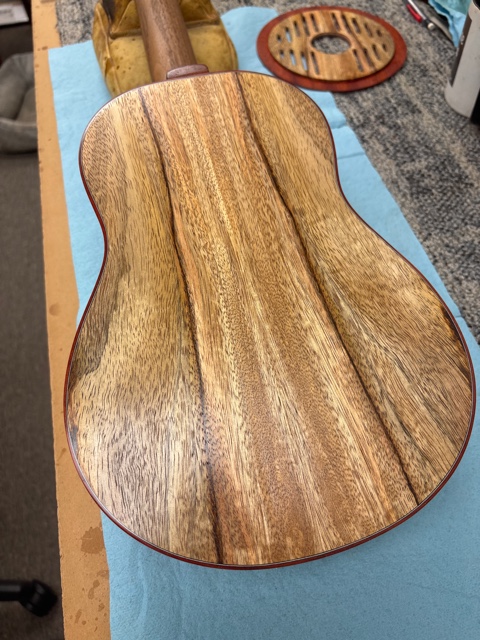

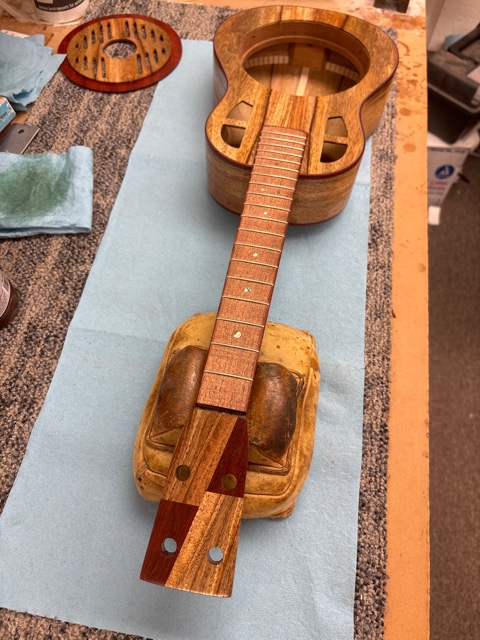

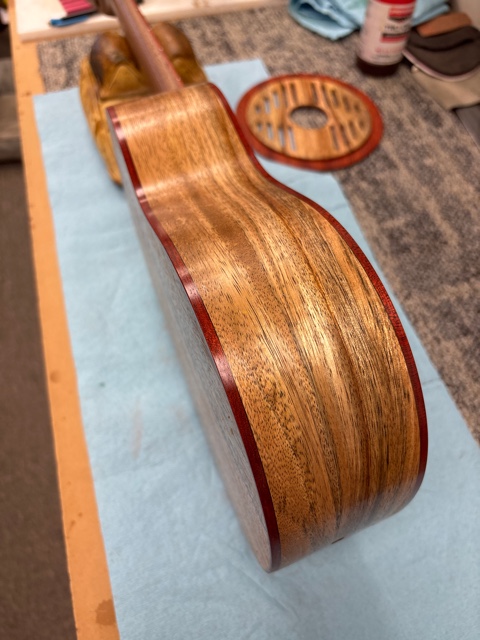

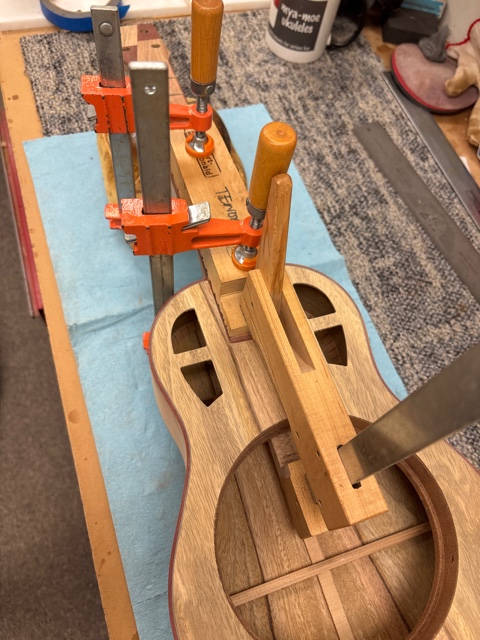

prep for finish, glue neck/fretboard onto body

9

first coat of oil

10

second coat of oil

11

third coat of oil

12

fourth coat of oil

13

apply lemon oil, setup cone & biscuit bridge (& pickup, if any)

14

final fretwork, cut nut, put in tuners, put on strings
